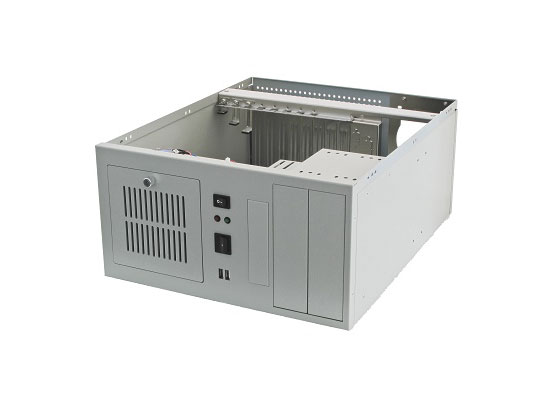

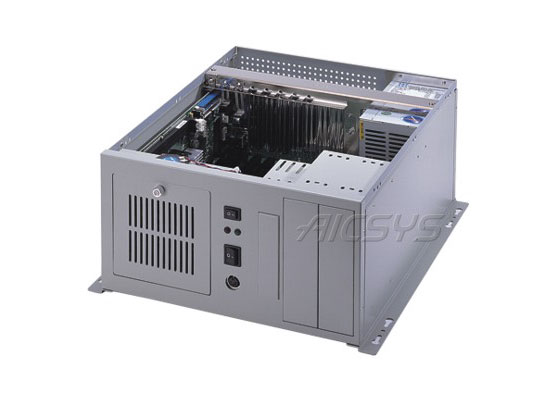

WMC-804B – Wallmount Chassis
8-Slot Wallmount Chassis for Full-Size SBC, (2) 5.25" Drive Bays, (1) 3.5" FDD Bay, (1) 3.5" HDD Bay, 8-Slot Expansion Backplane. Supports PS/2 or Mini-redundant ATX power supply
- Heavy-Duty Steel, in Beige color
- Designed for full/half size SBC

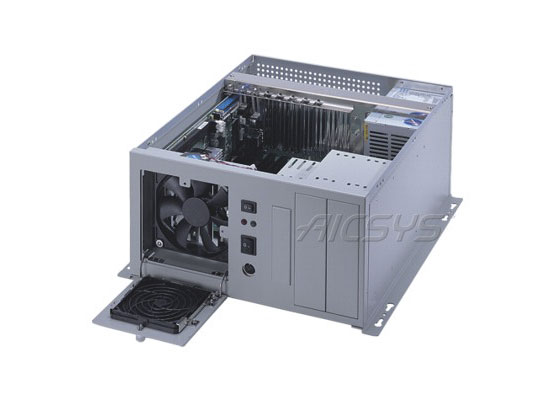

- (1) 12cm ball bearing cooling fan with removable filter
- Supports 8-slot backplanes
- (2) 5.25″ and (1) 3.5″ external bays, (1) 3.5″ internal bay

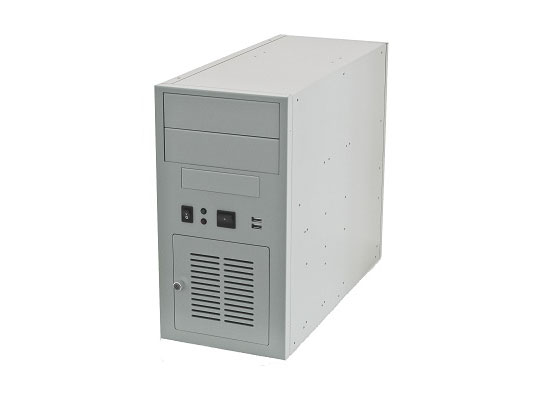

- Mounting by vertical or horizontal, easy to manage space
- 400W/600W PS/2 ATX power supply
Description
WMC-804B – Wallmount Chassis
| Board Support | Full and Half Size Single Board Computer |
|---|---|
| Expansion Slots | Up to (8) expansion slots BP-0804P: (2) PICMG 1.0, (3) ISA and (4) PCI slots BPE-0804PE: (1) PICMG 1.3, (3) PCI, (3) PCIe x4 and (1) PCIe x 16 slots |
| Drive Bays | (2) 5.25” and (1) 3.5” external drives and (1) 3.5” internal drives |
| Front Panel | (2) USB 2.0 Connector On/Off switch, reset switch, One power on/off LED and one HDD LED |
| Port | (2) USB 2.0 Connectors or (1) PS/2 Keyboard Connector (optional) |
| Power Supply | PS/2 power supply |
| Cooling | One 12cm ball bearing fan with replaceable air filter |
| Dimensions | 330 (W) x 406 (D) x 172 (H) mm; 13 (W) x 16 (D) x 6.8 (H) inches |
| Gross Weight | 8.6kg / 189.6lbs |
