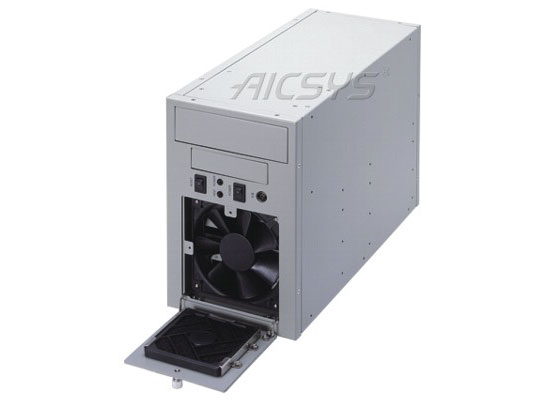

WMC-603B – Wallmount Chassis
6-Slot Wallmount Chassis for Full-Size SBC, (1) 5.25" Drive Bays, (2) 3.5" Drive Bay, 6-Slot Backplane, (1) 12CFM Fan, support PS/2 size power supply
- Heavy-Duty Steel Beige
- Designed for full/half size SBC
- One 12cm ball bearing cooling fan with removable filter
- Special design for HDD/FDD, for easy installation
- Vertically or horizontally mounted, easy to fit into space limited environment
- PS/2 size single 250~400W ATX or Mini Redundant 230~300W ATX P/S (Optional)
Description
WMC-603B – Wallmount Chassis
| Board Support | Full-Size Single Board Computer |
|---|---|
| Expansion Slots | Backplane with 2 PICMG, 1 ISA and 4 PCI slots. Total usable 6 slots |
| Drive Bays | One 5.25″ and one 3.5″ external drives and one 3.5″ internal drive |
| Front Panel | On/Off switch, reset switch, One power on/off LED and one HDD LED |
| Power Supply | Supports PS/2 ATX power supply |
| Cooling | One 12cm ball bearing fan with replaceable air filter |
| Dimensions | 260 (W) x 408.5 (D) x 172 (H) mm; 10 (W) x 16.1 (D) x 6.8 (H) inches |
| Gross Weight | 7.5kg/16.6lbs |
