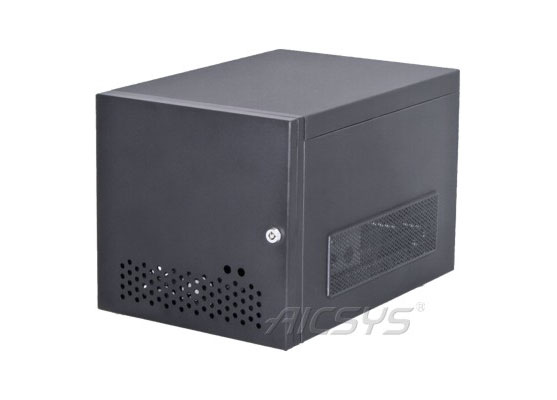

WMC-504M – Wallmount Chassis
Mini-ITX Chassis with one ODD Drive bay and two Mobile Racks for 3.5" drive, supports Flex ATX Power supply
- Heavy-duty Steel, Black
- Supports Mini-ITX motherboard
- Lockable Front door
- (1) 5.25″ external Drive bay
- (2) 3.5″ HDD Mobile rack
- (1) 3.5″ internal Drive bay
- (1) Additional space for (1) 3.5” HDD
- (2) Front USB 3.0 ports
- (2) Expansion slots
- (1) 80mm Ball-bearing fan
- Supports SFX ATX PSU
Description
WMC-504M – Wallmount Chassis
| Board Support | Mini-ITX motherboard | ||||
|---|---|---|---|---|---|
| Expansion Slots | Up to (2) expansion slots | ||||
| Drive Bays | (1) 5.25″ external Drive bay and (1) internal Drive bay (2) 3.5” HDD Mobile racks |
||||
| Front Panel | (2) USB 3.0 Ports Power On/Off switch, On/off LED, HDD LED |
||||
| Power Supply | Micro ATX active PFC power supply | ||||
| Cooling | One 8cm low-noise ball bearing fan | ||||
| Dimensions | 215 (W) x 323 (D) x 219 (H) mm; 84.7 (W) x 127.2 (D) x 86.3 (H) inches | ||||
| Gross Weight | 5.0Kgs | ||||
