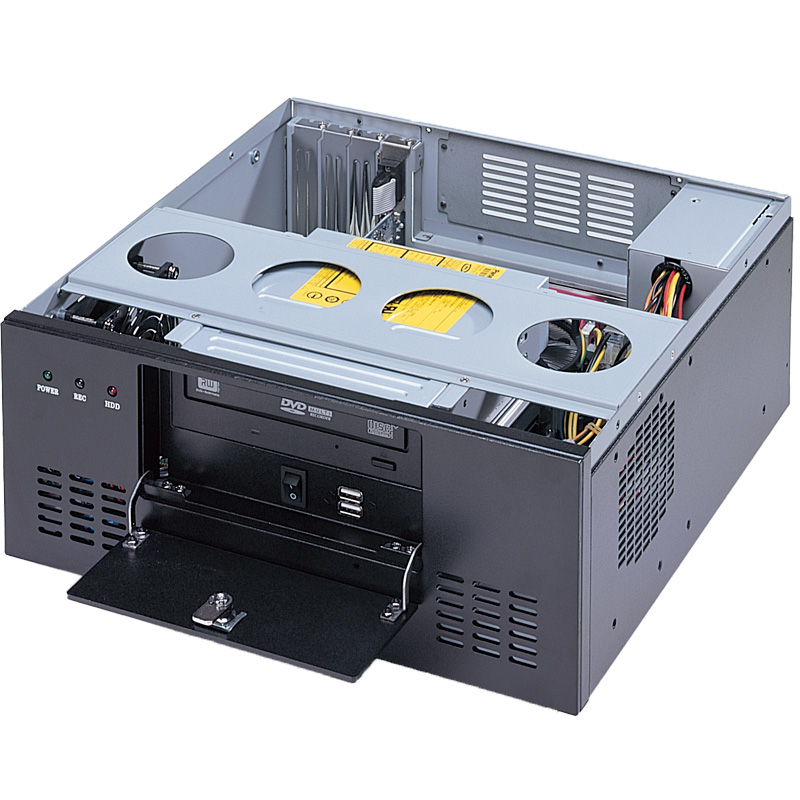

WMC-402M – Wallmount Chassis
4-Slot DVR Chassis for Micro-ATX motheboard, (1) 5.25" Drive Bay, (1) 3.5" Drive Bay, (1) 8CFM Fan, and Micro-ATX power supply

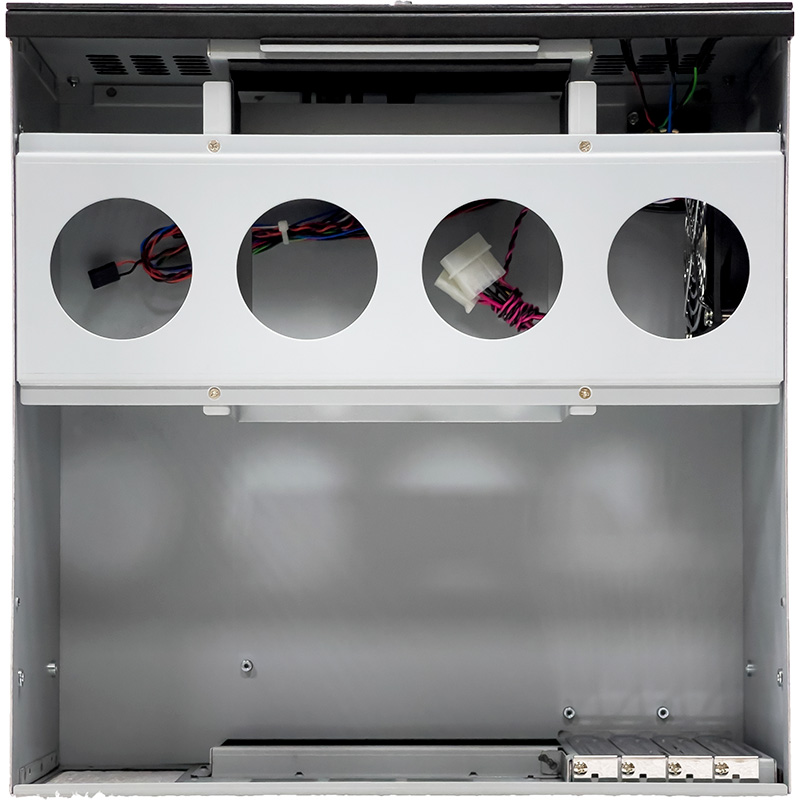

- Heavy-Duty steel construction
- 3mm aluminum front panel for extra ruggedness

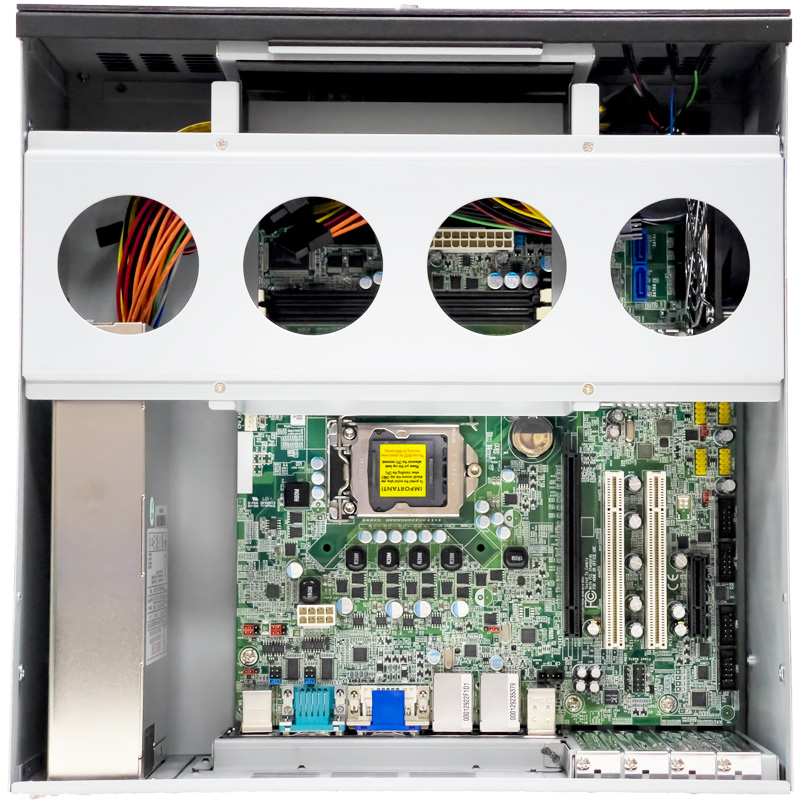

- Supports micro-ATX motherboard
- One 8cm Low-Noise cooling fan
- (1) 5.25″ drive bay for optical drive
- (1) 3.5″ drive bay for HDD
- SFX form factor (MicroATX) power supply
- Modular design for easy installation and maintenance
Description
WMC-402M – Wallmount Chassis

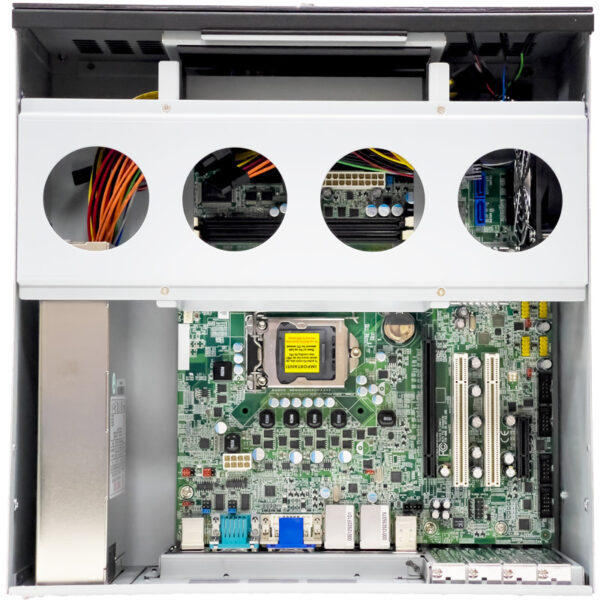

| Board Support | Micro ATX motherboard |

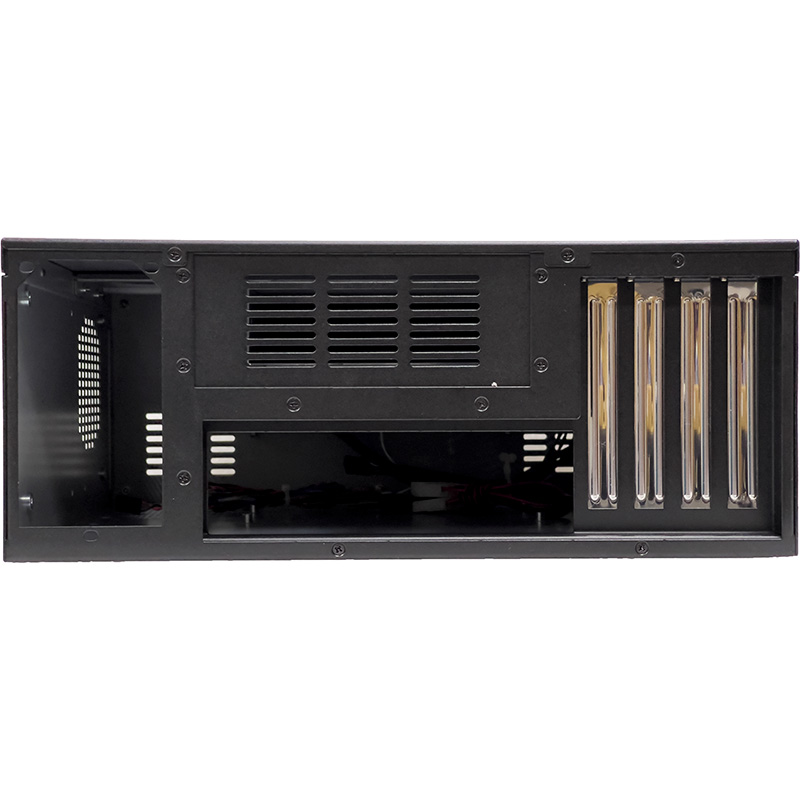

| Expansion Slots | (7) expansion slots |
| Drive Bays | (1) 5.25″ drive bay for optical drive and (1) 3.5″ internal drive bay (1) extra space for additional 3.5″ drive |

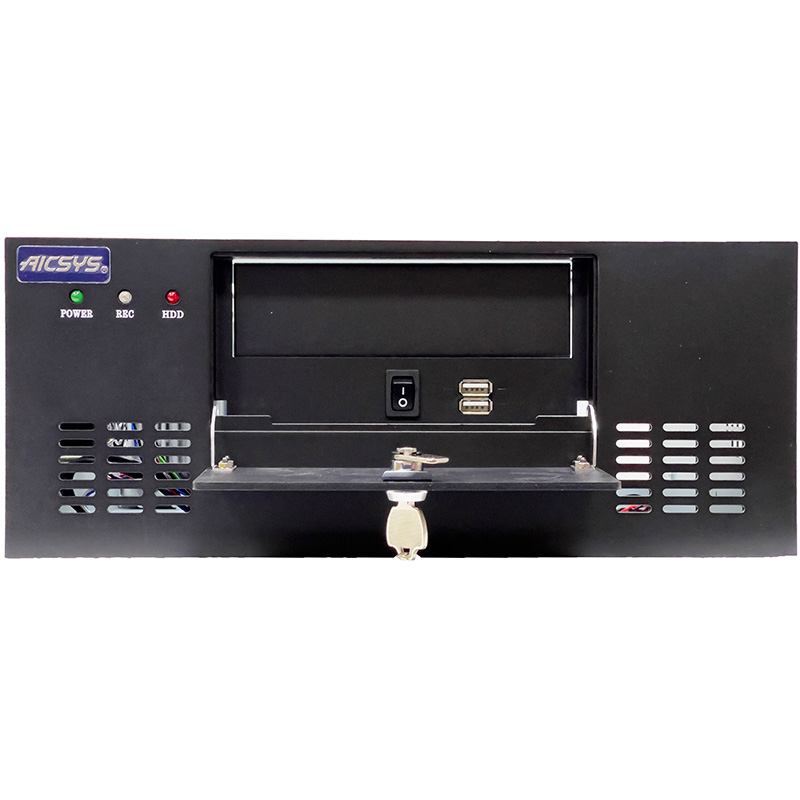

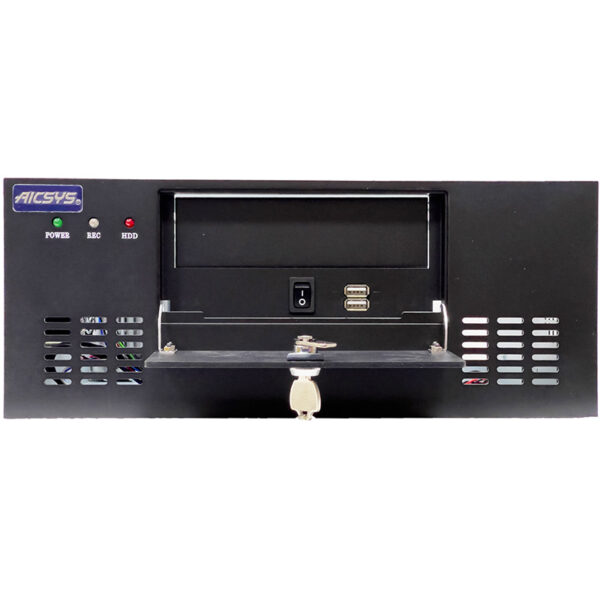

| Front Panel | Power On/Off Switch, LED indicators for power On/Off, HDD activity, and one recording in progress defined LED. |

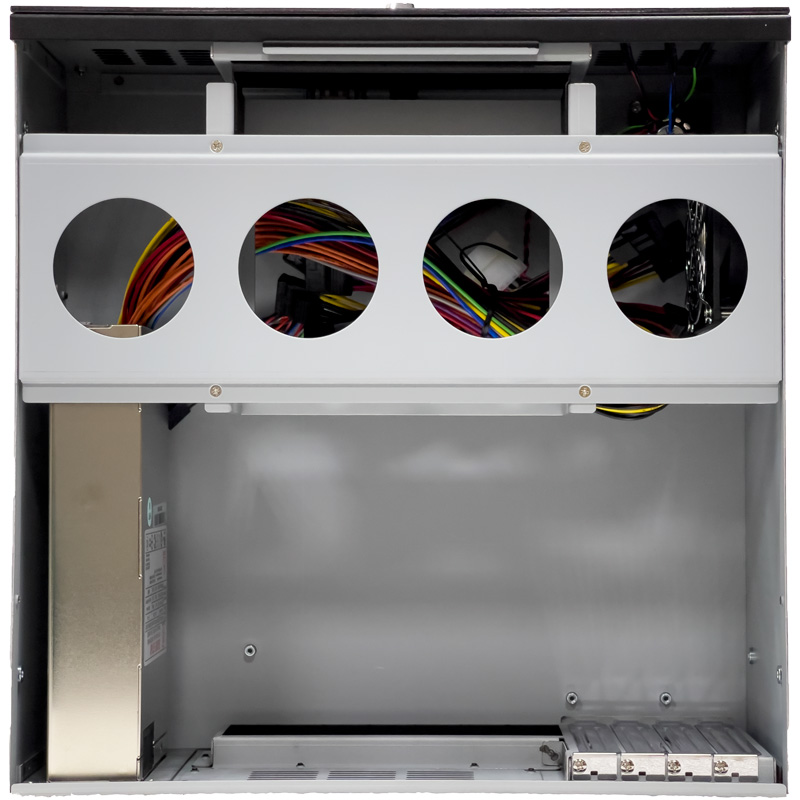

| Power Supply | SFX form factor (MicroATX) power supply Optional 1U power supply |

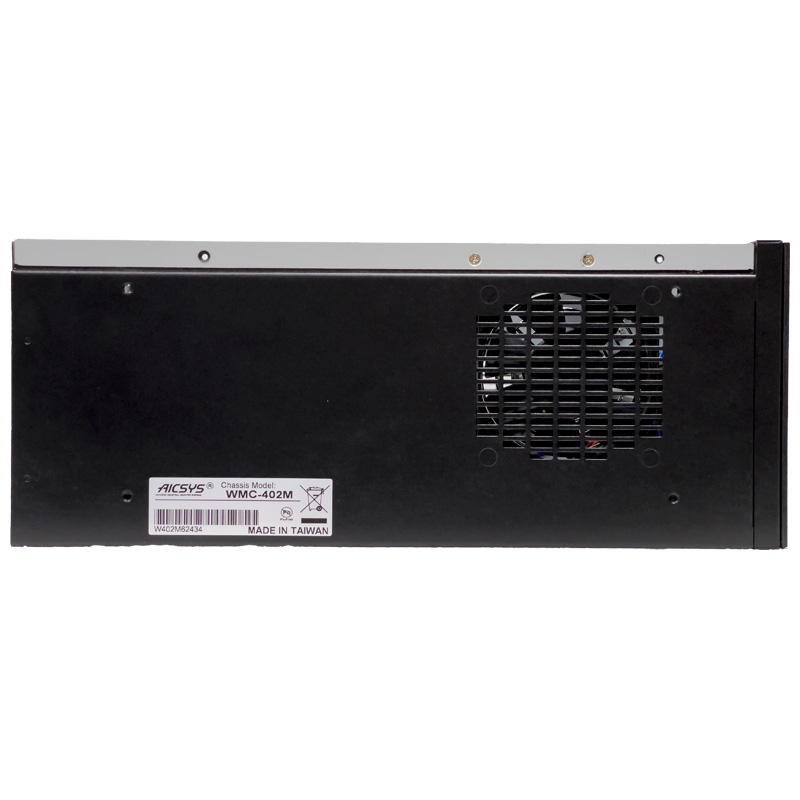

| Cooling | (1) 8cm ball-bearing fan |
| Dimensions | 337 (W) x 339.8 (D) x 136 (H) mm; 13.3 (W) x 13.4 (D) x 5.4 (H) inches |
| Net/Gross Weight | 5.1kg/8kg (11.3lbs/17.9lbs) |
