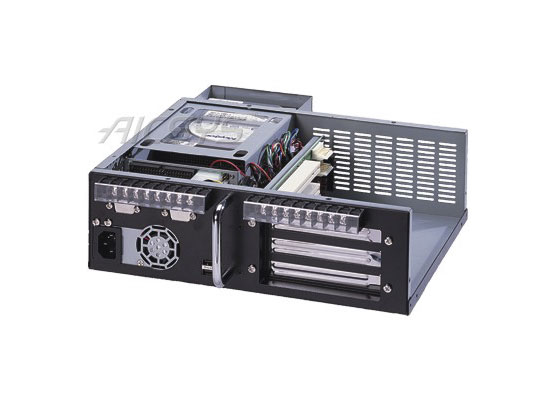

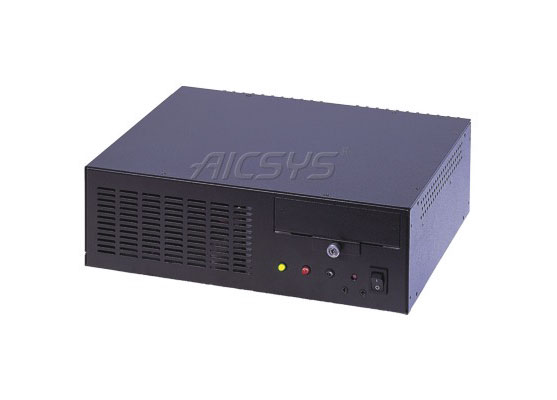

WMC-301B – Wallmount Chassis
3-Slot Mini Chassis for Half-Size SBC, (1) 3.5" Drive Bay for Mobile HDD, 3-Slot ISA/PCI/PCISA Backplane, and Flex ATX power supply
- Designed for Half Size SBC
- Easy removable industrial frame for one 3.5″ HDD
- Supports 3-Slot ISA/PCI/PCISA Backplane
- (2) USB ports for add-on functions
- 280(W) x 90(H) x 225(D) mm
- Suitable for Mini Low Power Automation Systems
Description
WMC-301B – Wallmount Chassis
| Board Support | Half Size Low Power Single Board Computer |
|---|---|
| Expansion Slots | Supports 3-Slot ISA/PCI/PCISA backplane |
| Drive Bays | One 3.5″ Removable HDD with Lock |
| Front Panel | On/Off switch, One power on/off LED and one HDD LED, and one User Defined LED |
| Power Supply | 200W Flex ATX power supply (included) |
| Cooling | Natural Convection and PSU Fan |
| Dimensions | 279 (W) x 225 (D) x 89 (H) mm; 11 (W) x 8.9 (D) x 3.5 (H) inches |
| Gross Weight | 4.8kgs/10.5lbs |
