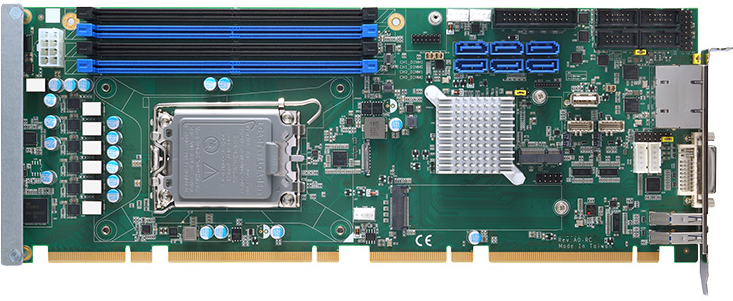

SBC-6512 – PICMG 1.3 Bus
PICMG 1.3 SBC supports 12/13/14th Generation Intel® Core™ Processors with Intel® R680E/H610E PCH, SATA3, M.2 Key, USB 3.2, Dual LAN and DVI-I
- Supports Intel 12/13/14th Gen. Core Processors
- Dual Gigabit Ethernet supported
- (6) SATA-600 with RAID 0/1/5/10 (R680E)
- Watchdog & Hardware Monitor function
- Supports Intel® AMT and vPro (R680E)
Description
SBC-6512 – PICMG 1.3 Bus
| CPU | LGA1700 for 12/13/14th Generation Intel® Core™ processors Up to 125W |
|---|---|
| Chipset | Intel R680E/H610E PCH |
| System Memory | (4) DDR5 4400 DIMM max. up to 128GB R680E supports ECC |
| Display | Intel® HD graphic (1) DVI-I, (1) DisplayPort++ (onboard header) |
| Ethernet | 1st port as 100/1000/2500 Mbps supports WOL,RPL/PXE Boot ROM with Intel® i225-LM (AMT and vPro supported) 2nd port as 100/1000/2500 Mbps supports WOL,RPL/PXE Boot ROM with Intel® i225-V |
| Storage | R680E: (6) SATA-600 with RAID 0/1/5/10 H610E: (4) SATA-600 R680E support M.2 Key M 2280, PCIe x4 signal |
| Audio | Optional Audio Codec with external module |
| Serial Port | (2) RS232 & (2) RS232/422/485 serial ports |
| USB | (2) USB 3.2 Gen2x1 and (4) USB 3.2 Gen1x1 and (3) USB 2.0 ports |
