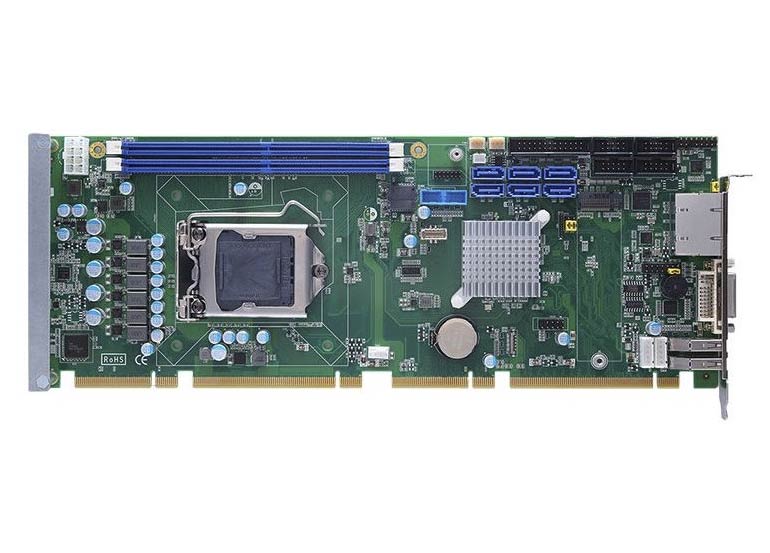

PICMG 1.3 SBC supports 8th Generation Intel® Core™ Processors with Intel® C246/Q370/H310 PCH, SATA3, M.2 Key, USB 3.1, Dual LAN and DVI-I

  • Supports Intel 8th Gen. Core Processors
  • Dual Gigabit Ethernet supported
  • (6) SATA-600 with RAID 0/1/5/10 (C246/Q370)
  • Watchdog & Hardware Monitor function
  • Supports Intel® AMT and vPro (C246/Q370)
SBC-6511 - PICMG 1.3 Bus

Description

SBC-6511 – PICMG 1.3 Bus

CPU LGA1151 for 8th Generation Intel® Core™ processors
Chipset Intel Q370/C246/H310 PCH
System Memory (2) 288-pin DDR4 2400/2666 DIMM max. up to 32GB
C246 supports ECC
Display Intel® HD graphic
Ethernet 1st port as 10/100/1000 Mbps supports WOL,RPL/PXE Boot ROM with Intel® i219LM (AMT 11 supported)
2nd port as 10/100/1000 Mbps supports WOL,RPL/PXE Boot ROM with Intel® i211AT
Storage C246/Q370: (6) SATA-600 with RAID 0/1/5/10
H310: (4) SATA-600
C246/Q370 support M.2 Key M 2280, PCIe x4 signal
Audio Optional Audio Codec with external module
Serial Port (2) RS232 & (2) RS232/422/485 serial ports
USB C246/Q370: (2) USB 3.1 Gen2 and (4) USB 3.1 Gen1 and (4) USB 2.0 ports
H310: (4) USB 3.1 Gen1 and (4) USB 2.0 ports
