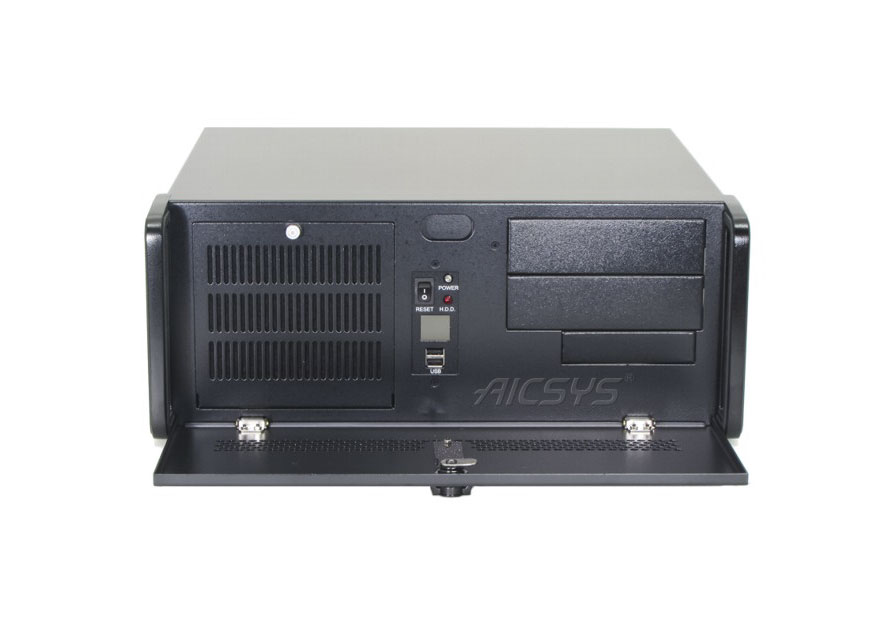

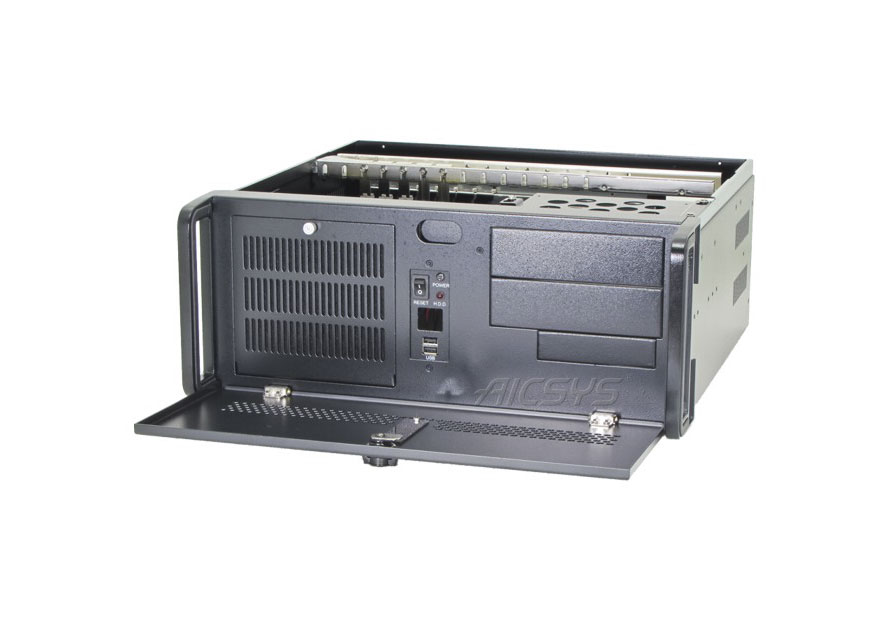

RCK-416 – 4U Rackmount Chassis
4U Military/Industrial Ruggedized Rackmount Chassis with 5 Drive bays, Supports 14-slot Backplane or ATX Motherboard, and PS2 or Mini redundant Power supply
- 19″ Rackmount 4U Height
- 1.6mm Heavy-duty Steel
- Supports ATX motherboard or 14-slot backplane
- Lockable Front door
- (2) 5.25″ external Drive bay
- (1) 3.5″ external Drive bay
- (2) 3.5″ internal Drive bays
- (2) Front USB 2.0 ports
- (1) 120mm Ball-bearing fan with replaceable air filter
- Supports PS2 or Mini redundant PSU
Description
RCK-416 – 4U Rackmount Chassis
| Board Support | 14-slot Backplane or ATX Motherboard |
|---|---|
| Expansion Slots | Up to (7) expansion slots for ATX motherboard, and up to (14) slots for backplane |
| Drive Bays | (2) 5.25″ external Drive bay (1) 3.5″ external Drive bay (2) 3.5″ internal Drive bays |
| Front Panel | (2) USB2.0 ports on front panel On/Off Switch and Reset Switch, Power ON/OFF LED |
| Power Supply | Mini-redundant or PS/2 power supply |
| Cooling | (1) 120mm Ball-bearing fan |
| Dimensions | 426.5 (W) x 381 (D) x 177 (H) mm; 16.8 (W) x 15.01 (D) x 6.97 (H) inches |
| Net/Gross Weight | NW: 12kg/26.5lbs; GW: 14kg/30.9lbs |
