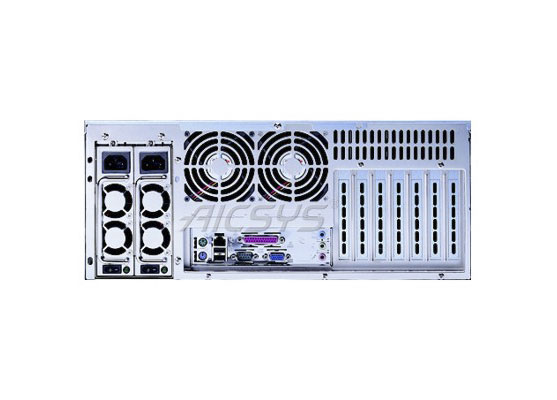

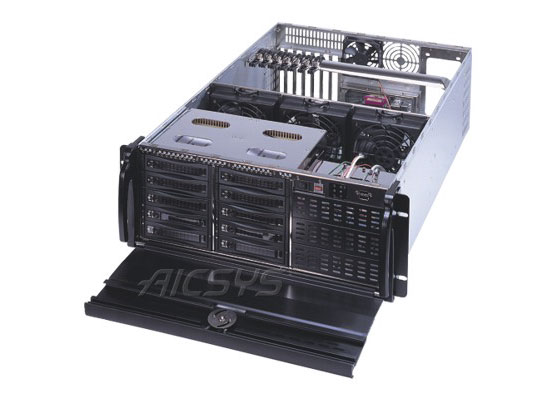

RCK-413M – 4U Rackmount Chassis
4U Rackmount chassis for RAID storage with (3) 5.25" and (10) 3.5" Drive Bays, (1) 80mm and (3) 120mm high speed ball- bearing fans and optional mini-redundant PSU
- 4U 19″ Rackmount Standard Chassis
- Heavy Duty Steel with Ni plating
- Supports ATX Motherboard
- (2) 2.0 USB ports on Front Panel
- Supports (10) 3.5″ HDD and (3) 5.25″ Drive Bays
- (1) 80mm and (3) 120mm high speed ball-bearing fans
- Supports mini-redundant or PS/2 power supply
Description
RCK-413M – 4U Rackmount Chassis
| Board Support | ATX/EATX motherboard |
|---|---|
| Expansion Slots | Up to (7) expansion slots |
| Drive Bays | (10) 3.5″ hot-swap mobile rack and (3) 5.25 external drive bays (Mobile rack applicable) |
| Front Panel | (2) USB2.0 ports on front panel On/Off Switch and Reset Switch, Power ON/OFF LED, (2) Temperature Sensor LED, (Fan condition LED |
| Power Supply | Mini-redundant or PS/2 power supply |
| Cooling | 80mm and (3) 120mm high speed ball-bearing fans |
| Dimensions | 427 (W) x 660 (D) x 176.8 (H) mm; 16.8 (W) x 26 (D) x 7 (H) inches |
| Gross Weight | 22.3kg/49lbs |
