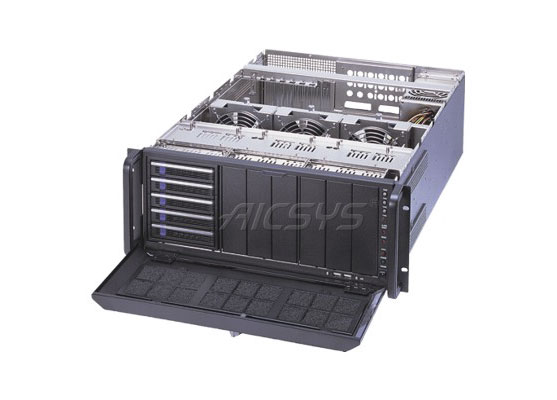

RCK-410DA – 4U Rackmount Chassis

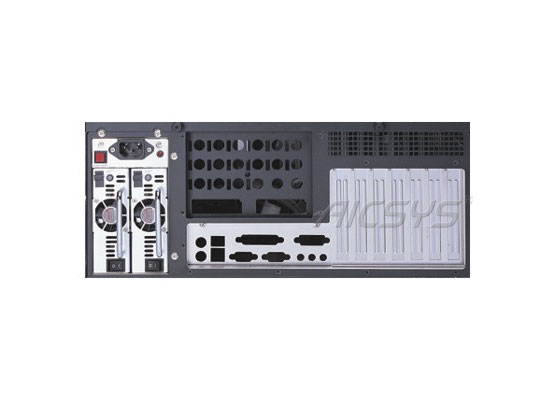

4U Rackmount chassis for ATX Motherboard with (9) 5.25" and (1) 3.5" Drive Bays, I/O rear panel for 16 ports BNC connector board. Supports PS/2 ATX P/S Redundant PSU
- 4U 19″ Rackmount Standard Chassis
- Supports ATX Motherboard
- Supports (9) 5.25″ external, (1) 3.5″ internal Drive Bays
- (2) 2.0 USB ports on Front Panel
- (3) 12cm Ball-bearing Fan and Environment Monitor Board
- Space for BNC card. Modifiable to fit user’s BNC card
- Lockable Front Doors and Replaceable Air Filters
Categories: 4U Rackmount Chassis, Industrial Chassis
Description
RCK-410DA – 4U Rackmount Chassis
Board Support | ATX Motherboard |
---|---|
Expansion Slots | (7) slots for full size add-on cards |
Drive Bays | (9) 5.25” and (1) 3.5” internal drive. Supports Optional Multi Drive Module |
Front Panel | (2) USB2.0 ports on front panel On/Off Switch and Reset Switch, Power ON/OFF LED, (1) HDD LED, (1) REC LED |
Power Supply | PS/2 power supply |
Cooling | (3) 12 cm fans with replaceable air filter and environmental monitoring board |
Dimensions | 425(W) x 616.6 (D) x 176(H) mm; 16.7 (W) x 24.2 (D) x 6.9 (H) inches |
Gross Weight | 21.6kg/47.6lbs |
