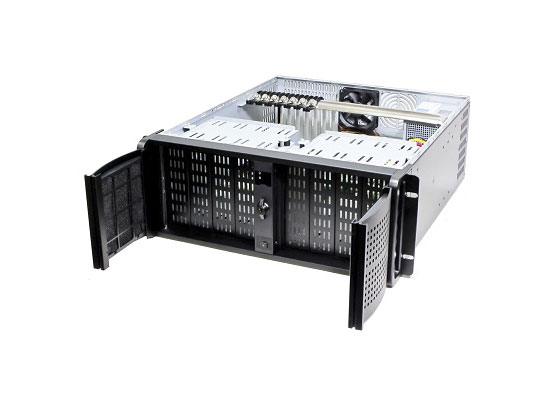

RCK-408 – 4U Rackmount Chassis

RCK-408 – 4U Rackmount Chassis

4U Rackmount chassis for ATX motherboard or 14 slot Backplane, (8) 5.25" Drive Bays,8cm ball-bearing fan, with one extra space for additional 8cm fan. PS2 or Mini redundant power supply

  • 4U 19″ Rackmount Standard Chassis
  • Heavy-duty Steel SECC 1.2t
  • Supports ATX motherboard or 14 slots Backplane
  • (8) 5.25″ external Drive bays
  • (2) Front LED indicators
  • (1) 80mm Ball-bearing fan, with space for one additional 80mm fan
  • Optional 18-inch or 24-inch Slide rail
  • Optional Mobile Racks
RCK-408 Usermanual_for_RCK-408M

Description

RCK-408 – 4U Rackmount Chassis

Board Support ATX Motherboard (408M); Extended ATX motherbard (408ME)
Backplane (408B or 408BE)
Expansion Slots (7) expansion slots for RCK-408M or RCK-408ME
(14) expansion slots for RCK-408B or RCK-408BE
Drive Bays (8) 5.25″ external Drive bays
Front Panel Power On/Off Switch, LED indicators for Power ON/Off and HDD activity
Power Supply Supports PS2 or Mini Redudant Power Supply
Cooling 8cm ball-bearing fan, with one extra space for additional 8cm fan
Dimensions RCK-408M/408B: 427 (W) x 480 (D) x 176.8 (H) mm; 16.7 (W) x 18.9 (D) x 7 (H) inches
RCK-408ME/408BE: 427 (W) x 660 (D) x 176.8 (H) mm; 16.7 (W) x 26 (D) x 7 (H) inches
Gross Weight 15kg / 33.1lb
