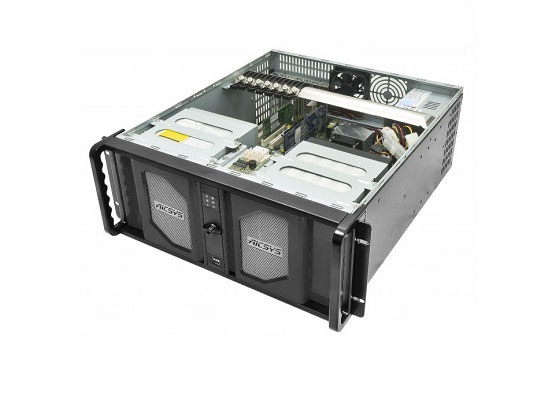

RCK-407 – 4U Rackmount Chassis
4U Rackmount chassis for 14-slot Backplane or ATX/EATX Motherboard, (4) 5.25" Drive Bays, (3) 3.5" Drive Bay, (2) Fans, and temperature monitor. PS/2 or Mini-redundant ATX power supply
- 4U 19″ Rackmount Standard Chassis
- Supports SingleBoard Computer with 14-slot Backplane
- Supports ATX & eATX Motherboard
- Supports (4) 5.25″ external, (1) 3.5″ external, and (2) 3.5″ internal Drive Bays
- (2) 2.0 USB ports on Front Panel or optional (2) USB3.0
- (1) 12cm and (1) 8cm ball-bearing fan with space for one additional fan
- Fan monitor circuit board
- Dual Lockable Front Doors and Replaceable Air Filters
Categories: 4U Rackmount Chassis, Industrial Chassis
Description
RCK-407 – 4U Rackmount Chassis
Board Support | RCK-407BA: supports 14-slot backplane RCK-407MA: supports ATX/eATX motherboard |
---|---|
Expansion Slots | RCK-407BA: depends on Backplane RCK-407MA: (7) slots for full size add-on cards |
Drive Bays | (4) 5.25″, (1) 3.5″ for external, (2) 3.5″ for internal |
Front Panel | (2) USB2.0 ports on front panel or optional (2) USB 3.0 On/Off Switch and Reset Switch, Power ON/OFF LED, (1) HDD LED, Fan & Alarm LED |
Power Supply | PS2 or Mini-Redundant ATX power supply |
Cooling | (1) 12 cm front fan with air filter, (1) 8 cm fan on the rear and environmental monitoring board. (1) extra space for additional 8cm fan |
Dimensions | 427 (W) x 480 (D) x 176.8 (H) mm; 16.8 (W) x 18.9 (D) x 7 (H) inches |
Net/Gross Weight | 12Kgs/15.6Kgs |
Ordering Information
RCK-407BA | 4U Rackmount chassis for 14-slot Backplane with (4) 5.25″ and (1) 3.5″ FDD and (2) internal HDD drive bays |
---|---|
RCK-407MA | 4U Rackmount chassis for ATX Motherboard with (4) 5.25″ and (1) 3.5″ FDD and (2) internal HDD drive bays |
RCK-407-400W | RCK-407 with 400W PS2 power supply |
RCK-407-600W | RCK-407 with 600W PS2 power supply |
RCK-407-400WR | RCK-407 with 400W Mini-Redundant power supply |
RCK-407-500WR | RCK-407 with 500W Mini-Redundant power supply |
MT-SR01 | Optional slide rail |
Recommended Configuration
Backplane | PICMG 1.0 | BP-1404P | BP-1407A | BP-1412A |
---|---|---|---|---|
PICMG 1.3 | BPE-1308A | BPE-1404PE | BPE-1413A | |
Power Supply | ||||
PNA-400AXP (400W 80PLUS) |
PNA-600AXP (600W 80PLUS) |
SS-400R8P | R4B-500G1V2 |
