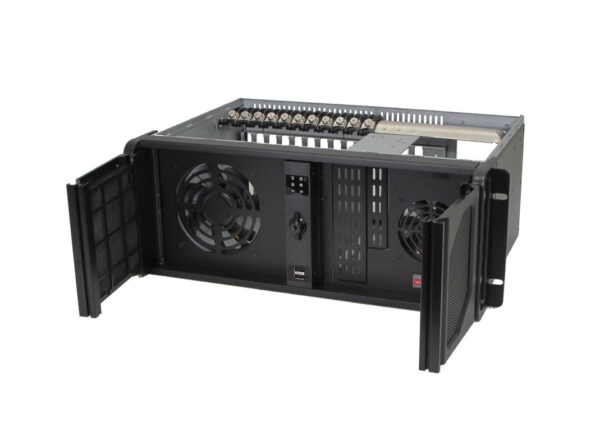

RCK-402BH – 4U Rackmount Chassis
4U Rackmount Chassis with only 280mm depth, with 2 drive bays and supports 14-slot backplane
- Heavy-duty steel construction
- (14) Full-height expansion slots to support 14-slot backplane
- (1) 5.25” and (1) 3.5” ext. drive bays
- (1) 12cm and (1) 8cm Fans with replaceable air filter
- (2) USB ports
- Hold-down bar to secure the add-on cards firmly
- Lockable front door for extra security
- Supports PS2 power supply
Categories: 4U Rackmount Chassis, Industrial Chassis
Description
RCK-402BH – 4U Rackmount Chassis
Board Support | 14-slot Backplane |
---|---|
Expansion Slots | Up to (13) expansion slots |
Drive Bays | (1) 5.25” and (1) 3.5” external drive bays |
Front Panel | On/Off Switch and Reset Switch, Power ON/OFF LED, HDD Active LED (2) USB 2.0, optional (2) USB 3.0 |
Power Supply | PS/2 ATX power supply |
Cooling | (1) 12cm and (1) 8cm ball-bearing Fans, with replaceable air filter |
Dimensions | 427 (W) x 280 (D) x 176.8 (H) mm; 16.81 (W) x 11.02 (D) x 6.96 (H) inches |
Gross Weight | 11.4kg |
