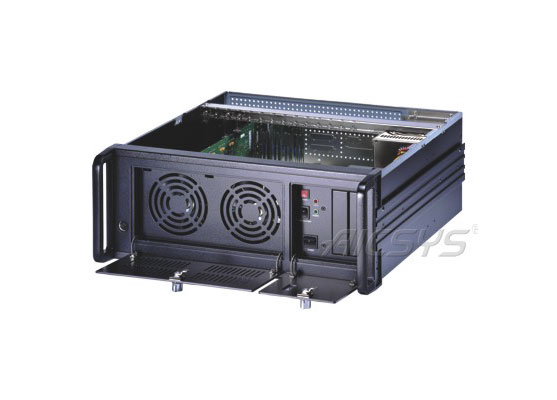

RCK-402 – 4U Rackmount Chassis
4U Rackmount chassis for 14-slot backplane & ATX Motherboard, (2) 3.5" Drive Bay, (2) 12CM Fans ,PS/2 ATX power supply
- 4U 19″ Rackmount Standard Chassis
- Front Panel with Lockable Door to Protect Drive
- Drive Bays: (2) 3.5″
- Supports 14-Slot Backplane or ATX Motherboard
- Replaceable Air Filter for easy cleaning
- Changeable rear I/O shield
- Anti Vibration Card Clamp
Description
RCK-402 – 4U Rackmount Chassis
| Board Support | 14-slot Backplane or ATX motherboard |
|---|---|
| Expansion Slots | Up to (13) expansion slots |
| Drive Bays | (2) 3.5″ external drives |
| Front Panel | One front panel connector for keyboard On/Off Switch and Reset Switch, Power ON/OFF LED, HDD Active LED |
| Power Supply | PS/2 or Mini-Redundant ATX power supply |
| Cooling | Two 12 cm ball bearing fans with replaceable air filter |
| Dimensions | 438.5 (W) x 450 (D) x 173 (H) mm; 17.2 (W) x 17.7 (D) x 6.8 (H) inches |
| Gross Weight | 14.1kg |
