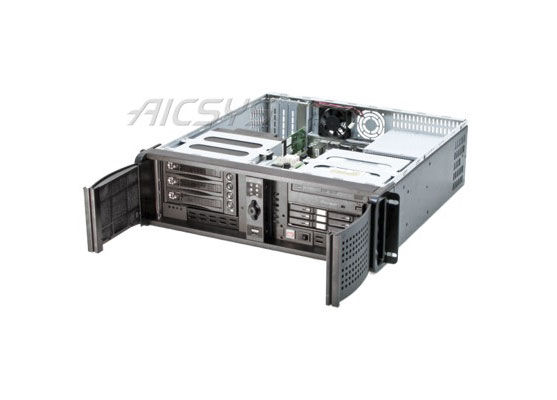

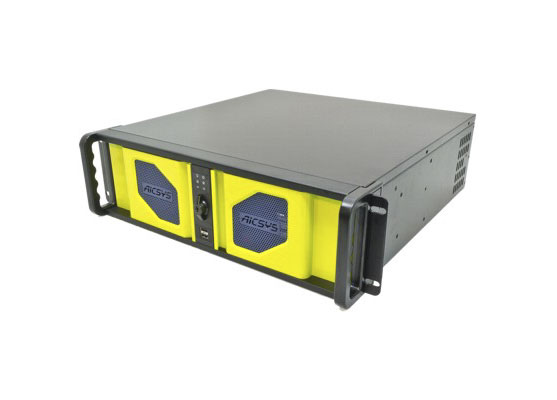

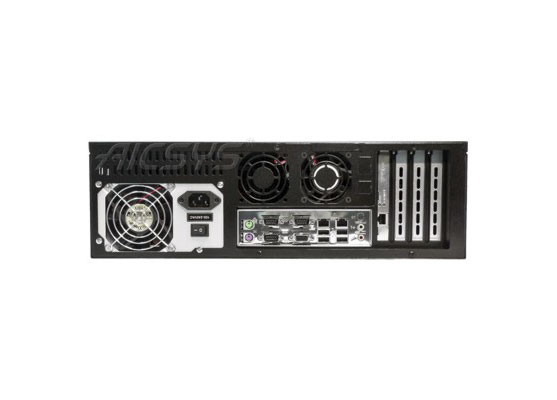

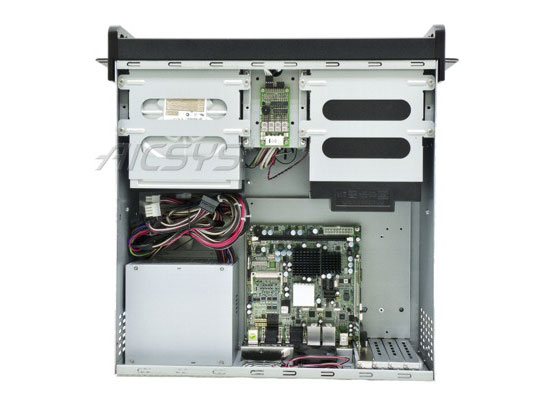

RCK-308MB – 3U Rackmount Chassis
3U Rackmount chassis for Micro-ATX motherboard, (4) 5.25" external, (2) 3.5" external, and (2) 3.5" internal Drive Bays, (1) 60mm Fan, supports PS/2 Power Supply
- 3U 19″ Rackmount Standard Chassis
- Heavy-duty Steel SECC 1.2t
- Supports microATX Motherboard
- (4) 5.25″ external, (2) 3.5″ external, and (2) 3.5″ internal Drive Bays
- (2) 2.0 USB ports
- (6) Front LED indicators
- (1) 60mm Ball-bearing fan with space for one additional 60mm fan
- Built-in System environmental monitor board
- Optional 18-inch Slide rail
Description
RCK-308MB – 3U Rackmount Chassis
| Board Support | micro-ATX Motherboard |
|---|---|
| Expansion Slots | (4) Slots for add-on cards |
| Drive Bays | (4) 5.25″ and (2) 3.5″ external Drive bays, and (2) 3.5″ internal Drive bays |
| Front Panel | (2) USB 2.0 Ports on front panel Power On/Off Switch and Reset Switch LED indicators for Power, HDD, Temperature sensor, Fan |
| Power Supply | Supports PS/2 power supply |
| Cooling | 6 cm and environmental monitoring board. One extra space for additional 6cm fan |
| Dimensions | 427 (W) x 450 (D) x 133.3 (H) mm; 16.8 (W) x 17.7 (D) x 5.248 (H) inches |
| Gross Weight | 12.6kg |
訂購資訊
| RCK-308MB | 3U Chassis for micro-ATX motherboard |
|---|---|
| RCK-308MB-300W | 3U Chassis for microATX motherboard with 300W ATX Power supply |
| RCK-308MB-600W | 3U Chassis for microATX motherboard with 600W ATX Power supply |
| RCK-308MB1 | 3U Chassis for microATX motherboard, with chassis depth 420mm |
| MT-SR01 | Optional Slide Rail for 500mm ~ 650mm rack cabinet |
