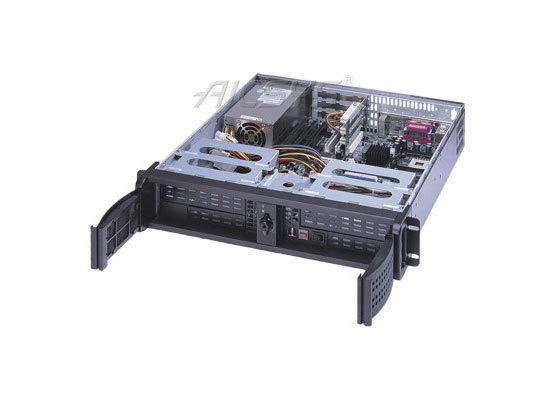

RCK-204MA – 2U Rackmount Chassis
2U Rackmount chassis for ATX motherboard, (2) 5.25", (2) 3.5" Drive Bays, (3) or (6) card slots through riser card, 2U ATX power supply or Redundant Power supply
- 2U 19″ Rackmount Standard Chassis
- Dual Lockable Front Doors and Replaceable Air Filters
- Support ATX motherboard
- Built-in temperature monitor board
- (6) LED indicators for system monitor
- (2) 3.5″ and (2) 5.25″ external drive bays
- (2) USB 2.0 ports
- Support 2U Single or Redundant Power Supply
- Optional (1) 8cm Fan and fan bar for additional fans
Description
RCK-204MA – 2U Rackmount Chassis
| Board Support | ATX Motherboard |
|---|---|
| Constriction | Heavy-Duty Steel SECC 1.2t |
| Expansion Slot | PCI-303: (3) 32-bit PCI slot through riser card PCIE-303: (2) 32-bit PCI slots, (1) PCIe x16 slot PCIE-303A: (1) 32-bit PCI slots, (1) PCIe x16 slot and (1) PCIe x1 slots |
| supports (6) low-profile card slots for RCK-204MA1 | |
| Drive Bays | (2) 3.5″ and (2) 5.25″ external drive bays |
| I/O port | (2) USB 2.0 ports |
| Front Panel | On/Off Switch and Reset Switch, Power On/Off LED and HDD LED |
| Cooling System | Replaceable air fiilter, and Fan monitoring board Optional (1) 8cm Fan Optional Fan Bar for additional 6cm fans |
| Power Supply | 2U ATX power supply up to 800W Redudant power supply |
| Dimensions | 427(W) x 480(D) x 88.2(H) mm; 16.8 (W) x 18.9 (D) x 3.47(H) inches |
| Gross Weight | 11.2kg / 24.9lbs |
| Packing carton dimension | 685 (W) x 550 (D) x 220 (H) mm |
