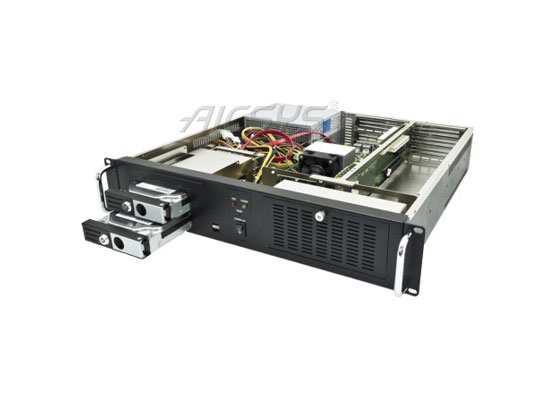

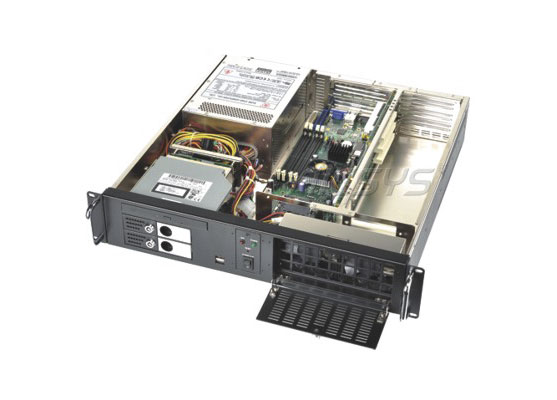

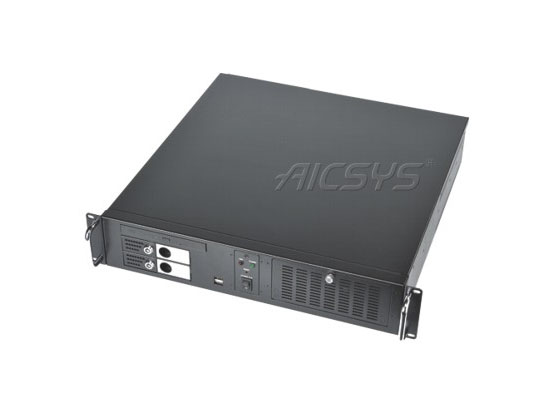

RCK-203BR – 2U Rackmount Chassis
2U Rackmount chassis for Single Board Computer with (1) slim ODD , (2) 3.5" HDD with mobile rack, PICMG1.0/ 1.3 backplane and up to 600W ATX power supply
- 2U 19″ Rackmount Standard Chassis
- Heavy duty Ni-plated steel
- Supports Full Size SBC through PICMG1.0/ 1.3 butterfly backplane
- Supports (2) 3.5″ External HDD with Mobile rack,
- Supports (1) Slim Optical Drive for 2.5″ SATA Drive mobile rack
- Front Door and Replaceable Air Filter
- (2) 80mm Replaceable High-speed Ball Bearing Fans for Better Ventilation

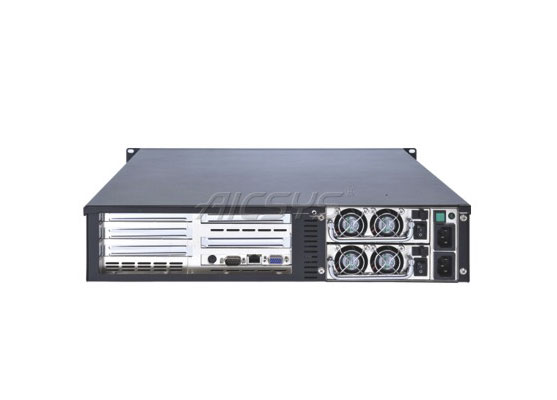

- 400W/600W ATX Auto-switch Power Supply or Mini-Redundant ATX power supply
Description
RCK-203BR – 2U Rackmount Chassis
| Board Support | Full size Single Board Computer |
|---|---|
| Expansion Slots | BP-0604P-2U: PICMG 1.0 backplane with (4) PCI slots BPE-0502P-2U: PICMG 1.3 backplane with (1) PCIe x16, (1) PCIe x4 and (2) PCI slots |
| Drive Bays | (2) 3.5″ External HDD with Mobile rack, (1) Slim Optical Drive |
| Front Panel | On/Off Switch and Reset Switch, Power On/Off LED and HDD LED |
| Power Supply | Up to 600W PS/2 ATX Power Supply (Optional 80PLUS) Mini-Redundant Power Supply |
| Cooling | (2) 8 cm ball bearing fans and replaceable air filter |
| Dimensions | 434 (W) x 450 (D) x 88 (H) mm; 17 (W) x 17.7 (D) x 3.5 (H) inches |
| Net/Gross Weight | 7.4Kg/10kg |
