RCK-203BE – 2U Rackmount Chassis

RCK-203BE – 2U Rackmount Chassis

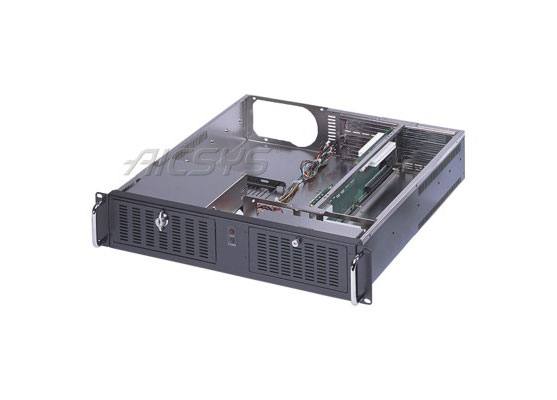

2U Rackmount chassis for Single Board Computer with (3) Drive Bays, PICMG 1.3 Backplane for SHB Express, (2) 80mm Fans and PS2 ATX power supply

  • 2U 19″ Rackmount Standard Chassis
  • Heavy duty Ni-plated steel, Black
  • Supports Full Size PICMG 1.3 or 1.0 SHB (System Host Board)
    (see Recommended Configuration)
  • Supports (1) 5.25″ and (1) 3.5″ FDD and (1) 3.5″ HDD Drive Bays
  • Lockable Front Door and Replaceable Air Filter
  • (2) 80mm Replaceable High-speed Ball Bearing Fans for Better Ventilation
  • 400W ATX PFC Auto-switch Power Supply
RCK-203BE Usermanual_for_RCK-203B-USB

Description

RCK-203BE – 2U Rackmount Chassis

Board Support Full size Single Board Computer

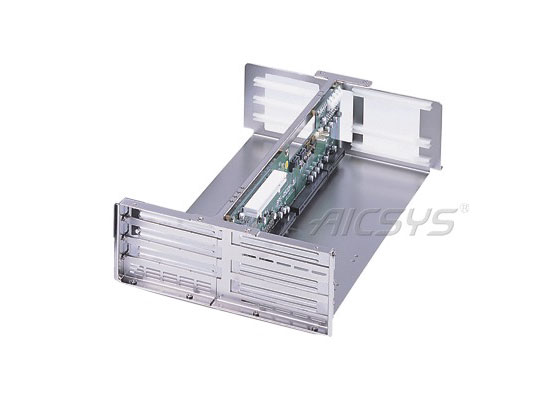

Expansion Slots PICMG 1.0 2U Butterfly Backplanes:
BP-0604P-2U
PICMG 1.3 2U Butterfly Backplanes:
BPE-0502P-2U
BPE-0605P-2U
Drive Bays (1) 5.25″, (1) 3.5″ external drive, and (1) 3.5″ internal drive
Front Panel (1) front panel PS/2 port for keyboard/mouse, (2) Front panel USB ports,
On/Off Switch and Reset Switch, Power On/Off LED and HDD LED
Power Supply Up to 600W PS2 ATX power supply
Cooling (2) 8 cm ball bearing fans and replaceable air filter
Dimensions 434 (W) x 450 (D) x 88 (H) mm; 17.1 (W) x 17.7 (D) x 3.5 (H) inches
Gross Weight 10.2kg
