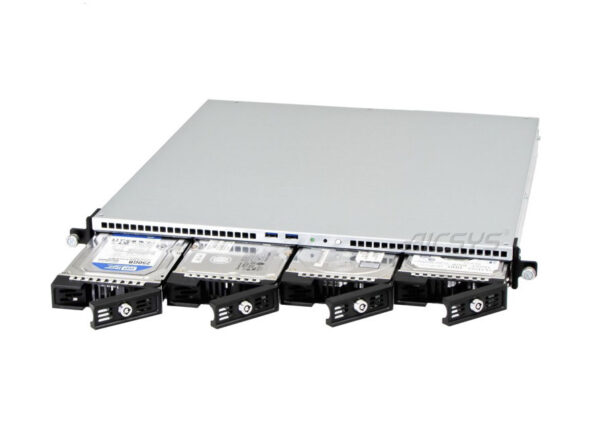

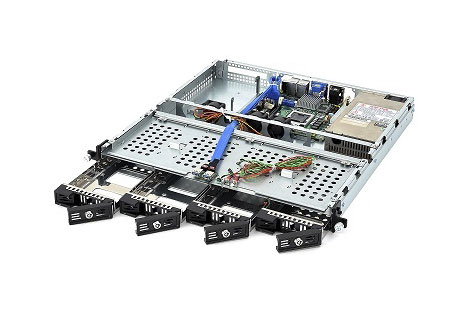

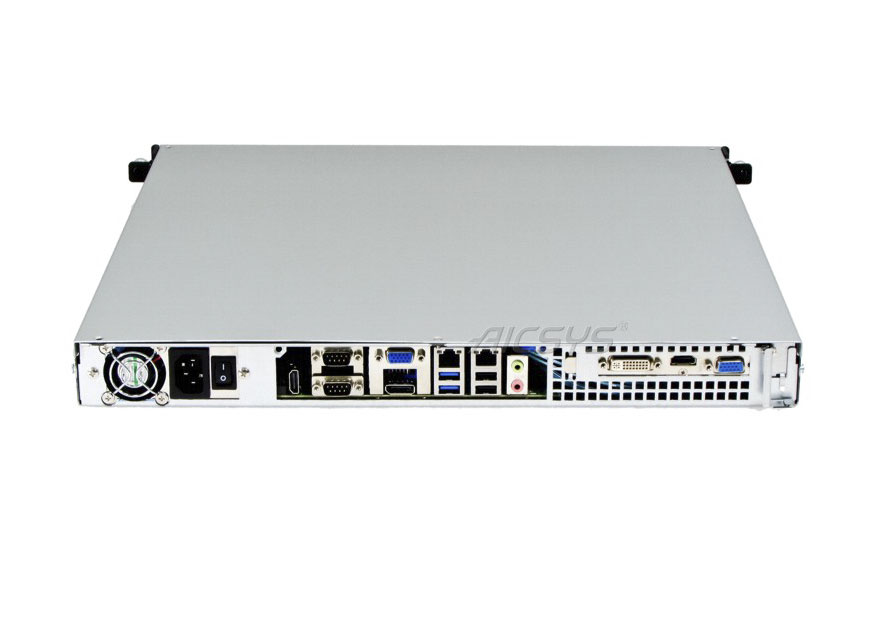

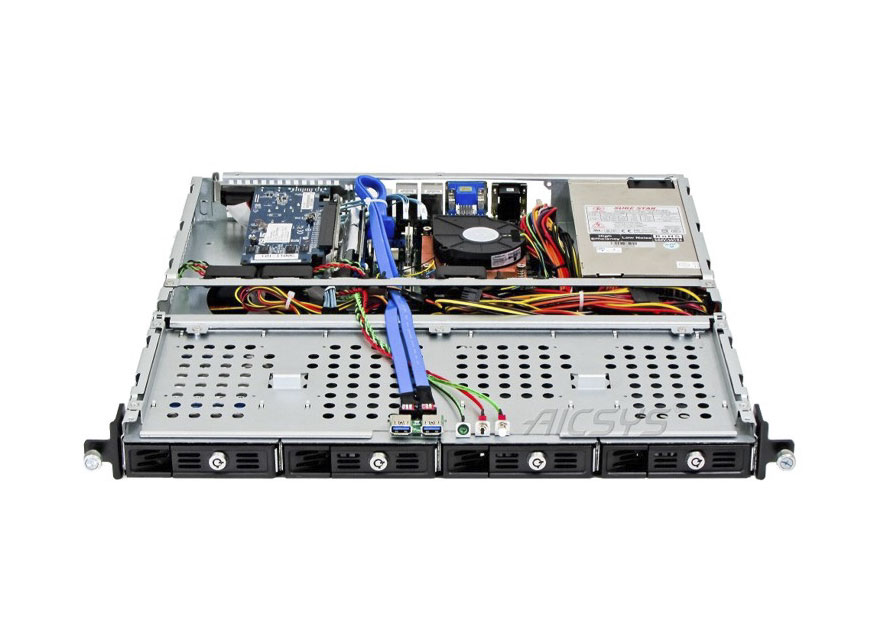

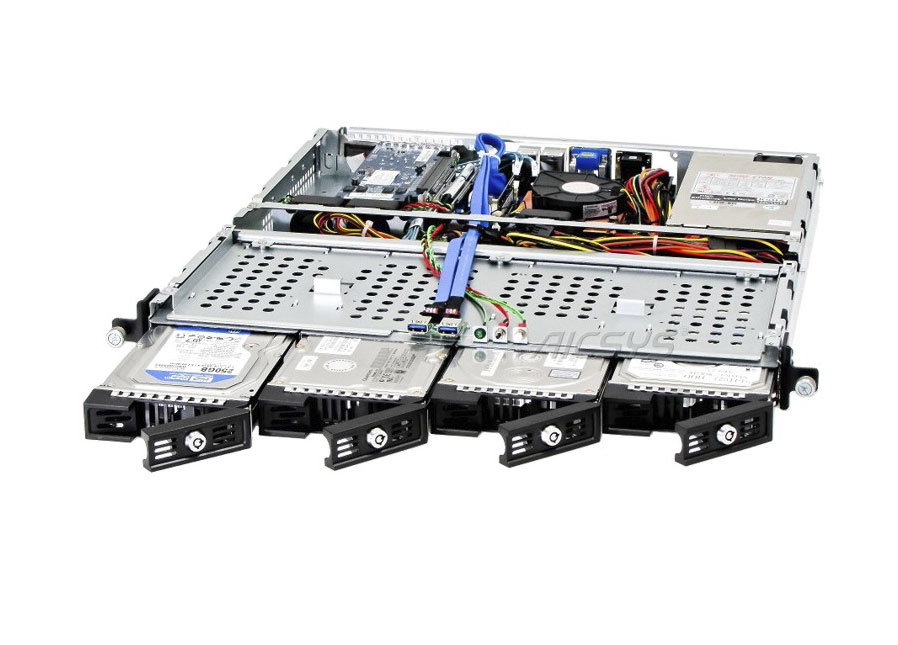

RCK-104M – 1U機架式機箱
1U Rackmount Chassis with 4 Drive bays, supports Mini-ITX Motherboard, and up to 520W ATX Power supply
- Heavy duty steel construction with only 455 mm in depth
- Support Mini-ITX motherboard
- Support 1U up to 520W ATX power Supply
- (4) 3.5″ or 2.5″ SATA HDD mobile racks
- (1) 2.5″ space for SSD or HDD
- (2) Front USB 3.0 ports
- (2) 4cm ball bearing cooling fans and
- optional four more fans
- PCIe x16 Riser Card
描述
RCK-104M – 1U機架式機箱
| Board Support | Mini-ITX motherboard | ||||
|---|---|---|---|---|---|
| Expansion Slots | (1) PCIe x16 slot | ||||
| Drive Bays | (4) 3.5″ or 2.5″ external Drive bays (1) 2.5″ internal Drive bay |
||||
| Front Panel | On/Off Switch and Reset Switch, Power On/Off LED and HDD activity (2) USB 3.0 |
||||
| Power Supply | 1U ATX power supply | ||||
| Cooling | (2) 4cm ball bearing cooling fans (4) Extra space for additional 4cm fan |
||||
| Dimensions | 430.5 (W) x 454.6 (D) x 44 (H) mm ; 16.94 (W) x 17.89 (D) x 1.73 (H) inch | ||||
| Net/Gross Weight | |||||
