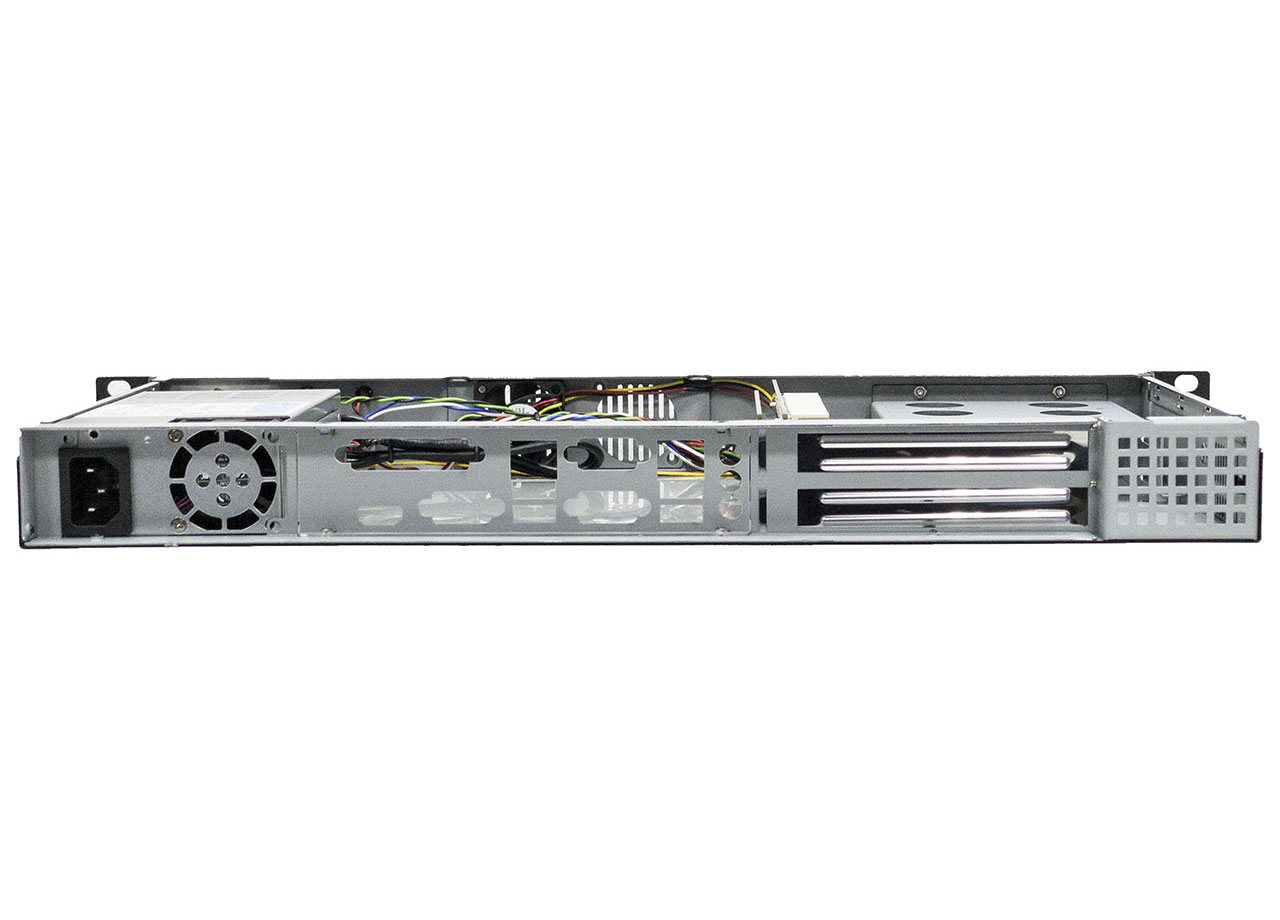

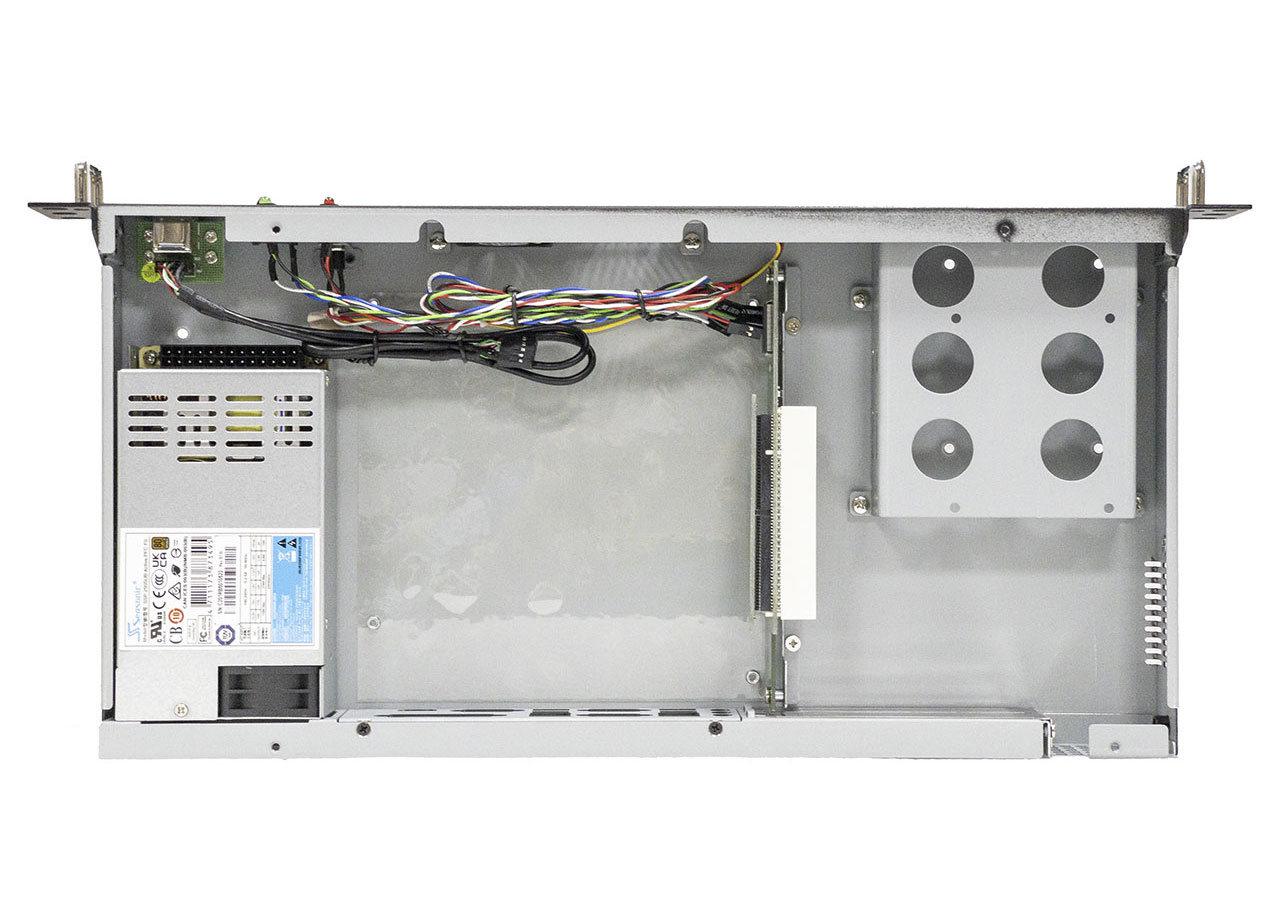

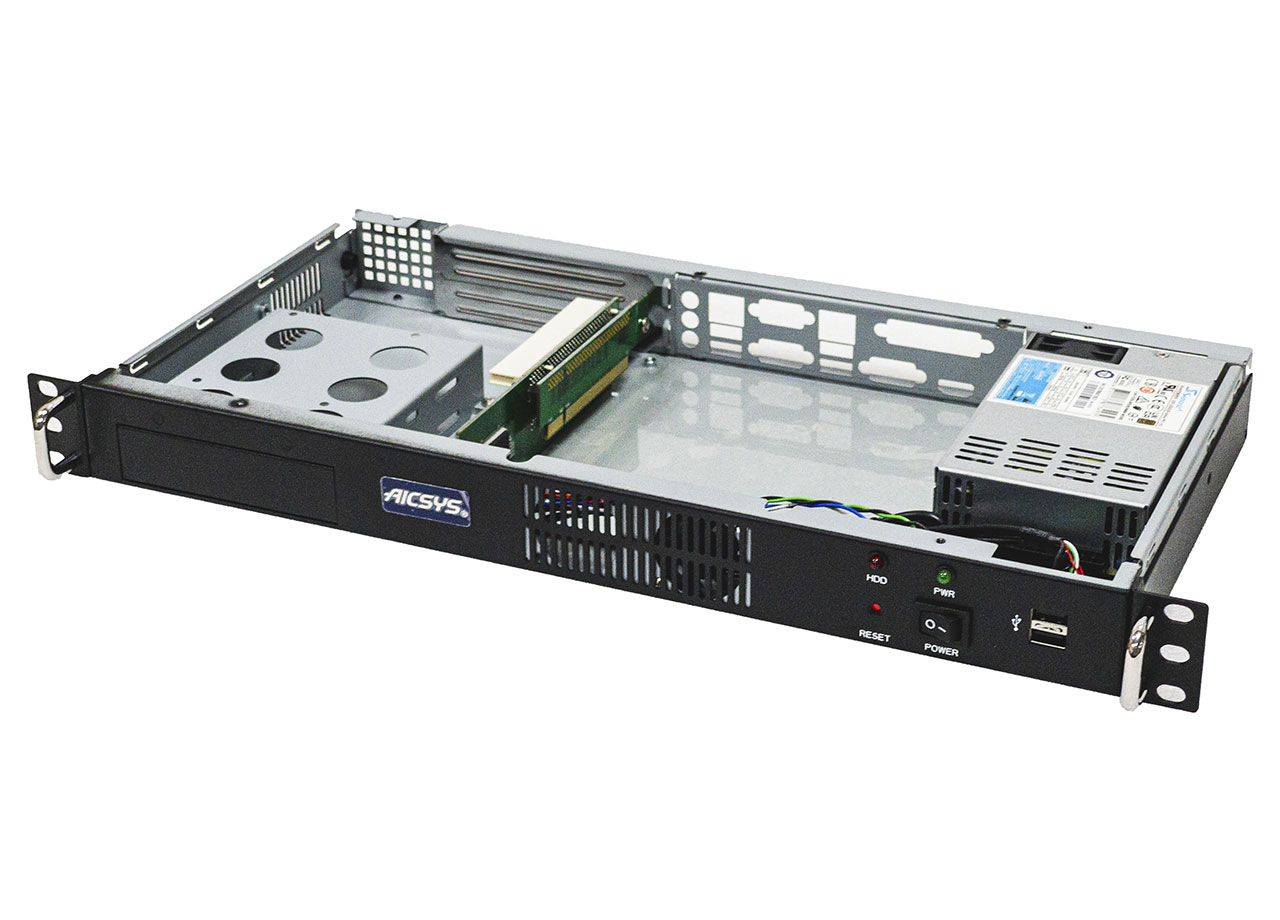

NDS-102M2 – 1U Rackmount Chassis
1U 19" Rackmount Standard Chassis / Mini-ITX / 250W ATX Power Supply / 2 HDD drive bays / 2 USB ports
1U 19″ Rackmount Standard Chassis
Heavy duty Steel
Support Mini-ITX motherboard
Support up to 250W ATX Power Supply
Support up to (2) HDD drive bays
(2) 2.0 USB ports on front panel
(1) 4cm ball-bearing fan with one additional fan space
(1) PCIe x 1 Riser Card or (2) 32-bit PCI Riser Card
Wallmount and Rackmount Dual Mounting kit supported
Description
NDS-102M2 – 1U Rackmount Chassis
| Board Support | Mini-ITX motherboard |
|---|---|
| Expansion Slots | (1) PCIe x 1 Riser Card or (2) 32-bit PCI Riser Card |
| Drive Bays | (1) 3.5″ and (1) 2.5″ Internal drive bay Supports one 3.5″ HDD mobile rack with (2) 2.5″ HDD |
| Front Panel | (2) USB 2.0 Ports on front panel On/Off Switch and Reset Switch, Power On/Off LED and HDD LED |
| Power Supply | 200W ATX power supply (PFC) |
| Cooling | (1) 4cm ball-bearing fan with space for one additional fan |
| Dimensions | 430 (W) x 220 (D) x 44 (H) mm; 16.9 (W) x 8.7 (D) x 1.7 (H) inches |
| Net/Gross Weight | 2.5Kgs/3.4Kgs |
