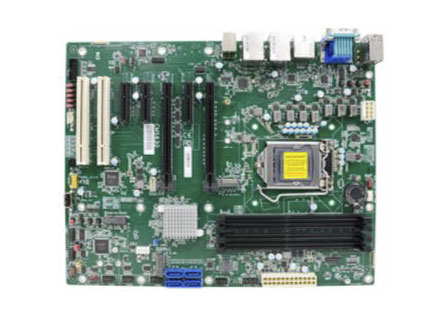

MBC-6619 – Industrial ATX Motherboards
Industrial ATX Motherboard supports Intel® 10th Gen. Core™ and Xeon W series, Intel® W480E/Q470E PCH, USB 3.1, SATA 3.0 with RAID, (2) LAN, VGA/DP++/HDMI, Audio
- Supports Intel 10th Gen. Core and Xeon W CPU
- (2) Gigabit Ethernet supported
- (4) SATA 3.0 with RAID 0/1/5/10
- (2) M.2 2242/2260/2280
- Watchdog & Hardware Monitor function
- (1) VGA and (1) DisplayPort and (1) HDMI
Description
| CPU | LGA1200 socket 10th generation Intel® Core™ i7/i5/i3, Xeon W series, Pentium® & Celeron® processor |
|---|---|
| Chipset | Intel® W480E/Q470E PCH |
| System Memory | (4) 288-pin DIMM dual channel DDR4 2666/2933 max. up 128 GB (ECC for Xeon) |
| Display | Intel® HD Graphics Gen. 9 (1)VGA and (1) DisplayPort and (1) HDMI |
| Ethernet | (2) Gigabit LAN with Intel® I211AT and i219LM |
| Storage | (4) SATA 3.0 with RAID 0,1,5,10 (1) M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/SATA/Intel® Optane Memory/intel RST) (1) M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/Intel® Optane Memory/intel RST) |
| Audio | Built-in HD Audio Codec with Realtek ALC888 |
| Serial Port | (4) RS-232 and (2) jumper selectable RS-232/422/485 serial ports |
| USB | (6) USB 3.2 and (6) USB 2.0 ports |
| Onboard Expansion | (2) PCIe x16 (Gen 3) (1 x16 signal or 2 x8 signals) (2) PCIe x4 (Gen 3) (1) PCIe x1 (Gen 3) (2) PCI |
