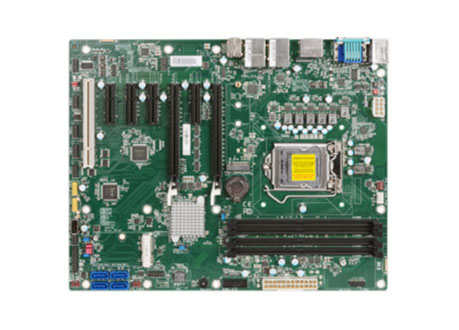

MBC-6615 – Industrial ATX Motherboards
Industrial ATX Motherboard supports Intel® 9th Gen. Core™ and Xeon E 2200 series, Intel® C246/Q370 PCH, USB 3.1, SATA 3.0 with RAID, (2) LAN, VGA/(2) DP++, Audio
- Supports Intel 9th Gen. Core and Xeon E CPU
- (2) Gigabit Ethernet supported
- (4) SATA 3.0 with RAID 0/1/5/10
- Watchdog & Hardware Monitor function
- (1) VGA and (2) DisplayPort
Description
MBC-6615 – Industrial ATX Motherboards
| CPU | LGA1151 socket 9th generation Intel® Core™ i9/i7/i5/i3, Xeon E 2278GE/2226GE, Pentium® & Celeron® processor |
|---|---|
| Chipset | Intel® C246/Q370 PCH |
| System Memory | (4) 288-pin DIMM dual channel DDR4 2400/2666 max. up 128 GB (ECC for Xeon) |
| Display | Intel® HD Graphics Gen. 9 (1)VGA and (2) DisplayPort |
| Ethernet | (2) Gigabit LAN with Intel® I211AT and i219LM |
| Storage | (4) SATA 3.0 (1 SATA shared with mini PCIe (SATA), default at mini PCIe) with RAID 0,1,5,10 (1) M.2 2242/2260/2280 M key (PCIe Gen3 x 2 NVMe) |
| Audio | Built-in HD Audio Codec with Realtek ALC888 |
| Serial Port | (4) RS-232 and (2) jumper selectable RS-232/422/485 serial ports |
| USB | (6) USB 3.1 and (6) USB 2.0 ports |
| Onboard Expansion | (2) PCIe x16 (Gen 3) (1 x16 signal or 2 x8 signals) (3) PCIe x4 (Gen 3) (1) PCIe x1 (Gen 3) (1) PCI |
