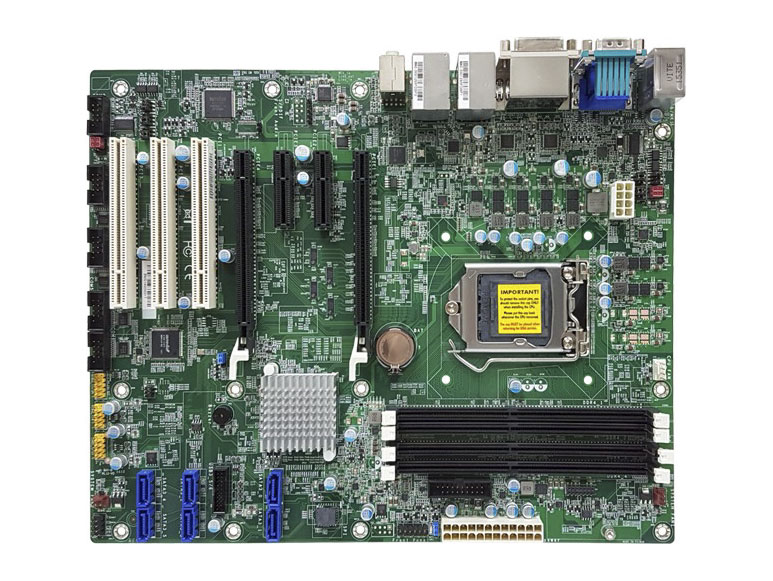

MBC-6608 – Industrial ATX Motherboards
Industrial ATX Motherboard supports Intel® 6th Gen. Core™ and Xeon E3 V5, Intel® C236 PCH, USB 3.0, SATA 3.0 with RAID, (2) LAN, VGA/DVI/HDMI, Audio
- Supports Intel 6th Gen. Core and Xeon E3 V5
- (2) Gigabit Ethernet supported
- (6) SATA 3.0 with RAID 0/1/5/10
- Watchdog & Hardware Monitor function
- VGA and DVI and HDMI
Description
MBC-6608 – Industrial ATX Motherboards
| CPU | LGA1151 socket 6th generation Intel® Core™ i7/i5/i3, Xeon E3 V5, Pentium® & Celeron® processor |
|---|---|
| Chipset | Intel® C236 PCH |
| System Memory | (4) 288-pin DIMM dual channel DDR4 1866/2133 max. up 64GB (ECC for Xeon) |
| Display | Intel® HD Gen. 9 Graphics (1) VGA, (1) DVI-D and (1) HDMI HDMI Supports up to 4096 x 2160 @24Hz Resolution |
| Ethernet | (2) Gigabit LAN with Intel® I210AT and i219LM Supports Wake-on-LAN, PXE Boot ROM |
| IDE | None |
| SATA | (6) SATA3 with RAID 0, 1 ,5, 10 |
| Audio | Built-in HD Audio Codec with Realtek ALC888S |
| Serial Port | (4) RS-232 and (2) jumper selectable RS-232/422/485 serial ports |
| USB | (6) USB 3.0 and (8) USB 2.0 ports |
| Onboard Expansion | (2) PCIe x16 Gen3 ((1) PCIe x16 or (2) PCIe x8) (2) PCIe x4 Gen3 (3) PCI |
