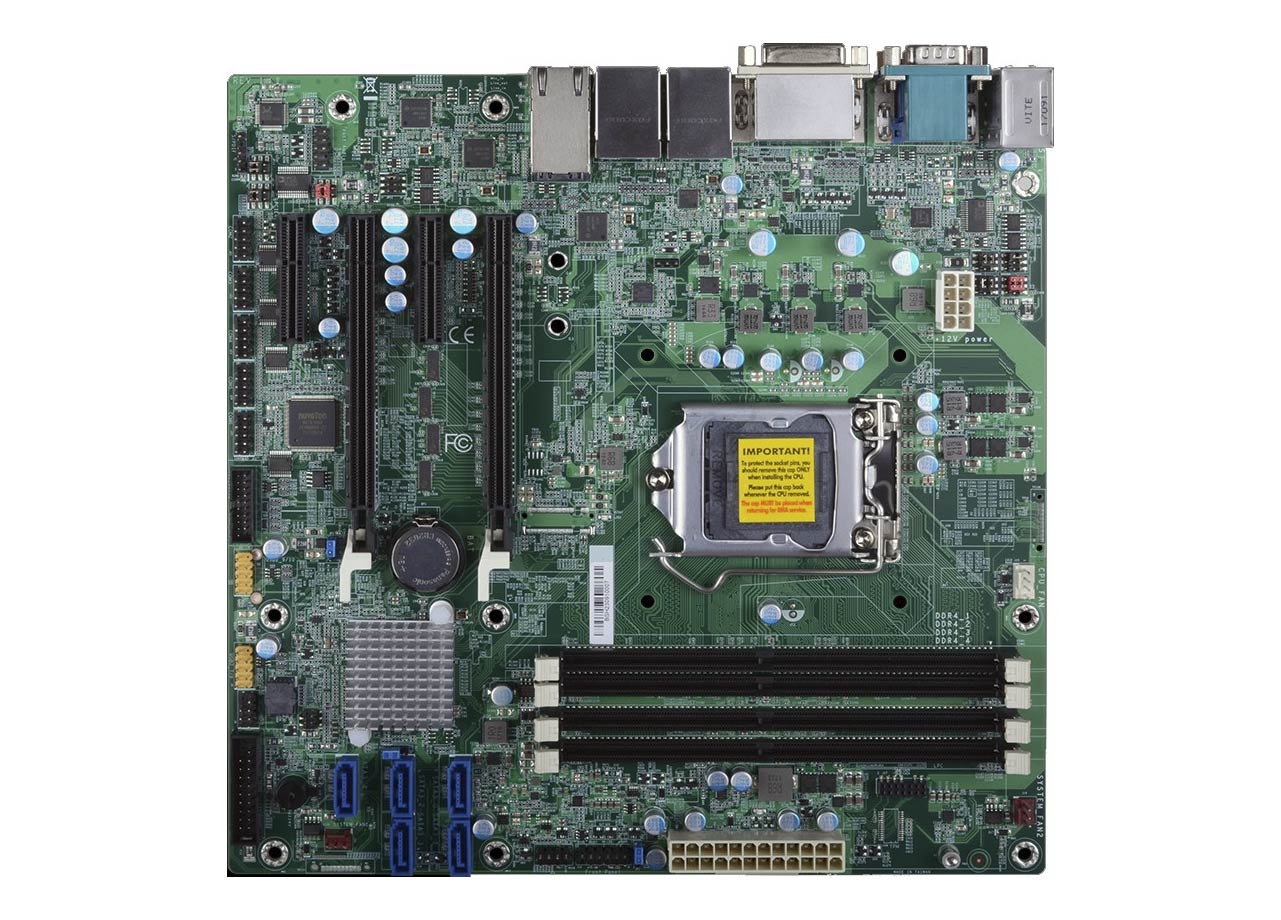

MBC-6606 – Industrial Micro-ATX Motherboards

MBC-6606 – Industrial Micro-ATX Motherboards

Industrial Micro-ATX Motherboard supports LGA1151 Intel® Core™ Xeon E3 V6 & i7/ i5/ i3, Intel® Q170 PCH, USB 3.0, SATA 3.0 with RAID,(4) LAN, VGA/DVI/DP, Audio

  • Supports Intel Xeon E3 V6
  • Supports Intel 7th Gen. Core i3/i5/i7 Processors
  • (4) Gigabit Ethernet supported
  • (5) SATA 3.0 with RAID 0/1/5/10
  • Watchdog & Hardware Monitor function
  • VGA and DVI-I and DisplayPort
MBC-6606

Description

CPU LGA 1155 socket for:

Intel® Core™ Xeon E3 V6 Processor, 8M Cache,
Intel® Core™ i7-7700 Processor, Quad Core, 8M Cache, 3.6GHz (4.2GHz), 65W
Intel® Core™ i5-7500 Processor, Quad Core, 6M Cache, 3.4GHz (3.8GHz), 65W
Intel® Core™ i3-7101E Processor,Dual Core, 3M Cache, 3.9GHz , 65W

Chipset Intel® Q170/C236 PCH
System Memory (4) 288-pin DIMM dual channel DDR4 2133/2400 max. up 64 GB (ECC for C236 with Xeon)
Display Intel® HD Graphics
(1) VGA, (1) DVI-I outputs and (1) DisplayPort
DisplayPort Supports up to 4096 x 2304 @60Hz Resolution
Ethernet (4) Gigabit LAN with Intel® I211AT and i219LM
Supports Wake-on-LAN, PXE Boot ROM
IDE None
SATA (5) SATA 3.0 with RAID 0/1/5/10
Audio Built-in HD Audio Codec with Realtek ALC888S
Serial Port (4) RS232 & (2) RS232/422/485 serial ports
USB (6) USB 3.0 and (6) USB 2.0 ports
Onboard Expansion (2) PCIe x 16 Gen3
(2) PCIe x 4 Gen3
