Industrial ATX Industrial Motherboard with LGA1200 Socket 10th Gen Intel® Core™ Processors, Intel® W480E, DDR4, USB 3.2, SATA RAID, Dual LANs, VGA/DVI/DisplayPort/HDMI

  • Supports Intel 10th Gen. Core and Xeon W CPU
  • Dual Gigabit Ethernet supported
  • (4) SATA-600 with RAID 0, 1, 5 ,10
  • Supports M.2 Key M 2280 with NVMe
  • HDMI/DVI/Display Port/VGA multiple outputs

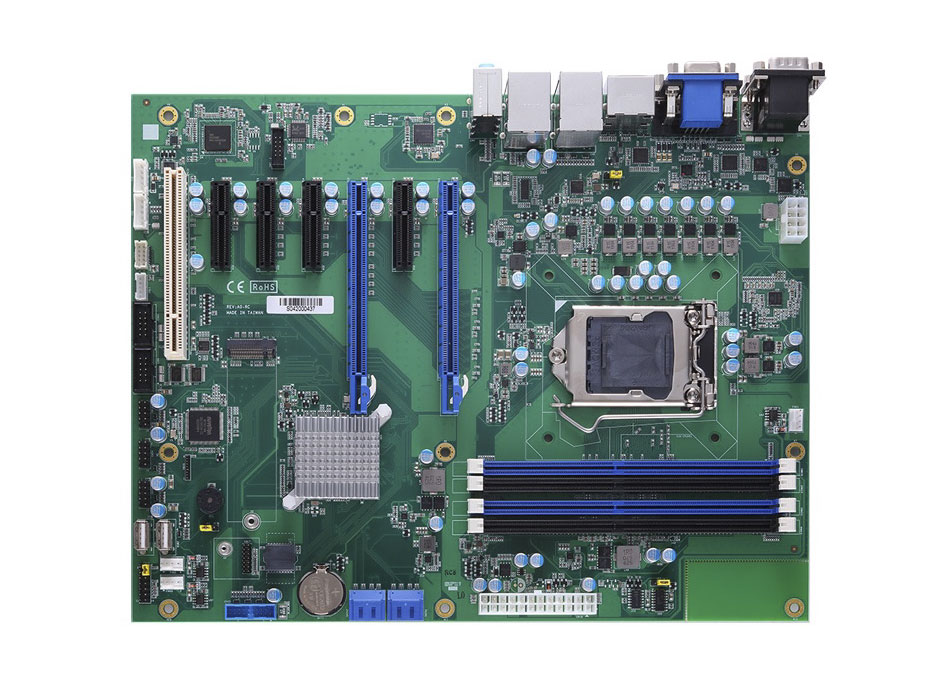

MBC-6522

Description

CPU LGA1200 socket supports 10th generation Intel® Core™ i7/i5/i3, Xeon W, Pentium® & Celeron® processors
Up to 125W TDP
Chipset Intel® W480E
System Memory (4) 288-pin DIMM DDR4 2933 up to 128GB
Xeon E supports ECC RAM
Display Intel® HD Graphics
(1) HDMI, (1)VGA, (1) DVI-D and (1) DisplayPort++
Ethernet LAN1 with 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM, iAMT with Intel® i219LM
LAN2 with 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM with Intel® i211-AT
Storage (4) SATA3 with RAID 0, 1, 5, 10
(1) M.2 Key M 2280 (signal: PCIe x4/SATA)
Audio Built-in HD Audio Codec with Realtek ALC888
Serial Port (2) RS-232 and (2) jumper selectable RS-232/422/485 serial ports
USB (2) USB 3.2 Gen2 (rear I/O)
(4) USB 3.2 Gen1 (rear I/O, internal)
(8) USB 2.0 ports (pin header, 180D type A)
Onboard Expansion (1) PCIe x16 slot (signal: x16 or x8)
(1) PCIe x16 slot (signal: x0 or x8)
((3) PCIe x4 slots
(1) PCIe x4 slot with x1 signal
(1) PCI slot
