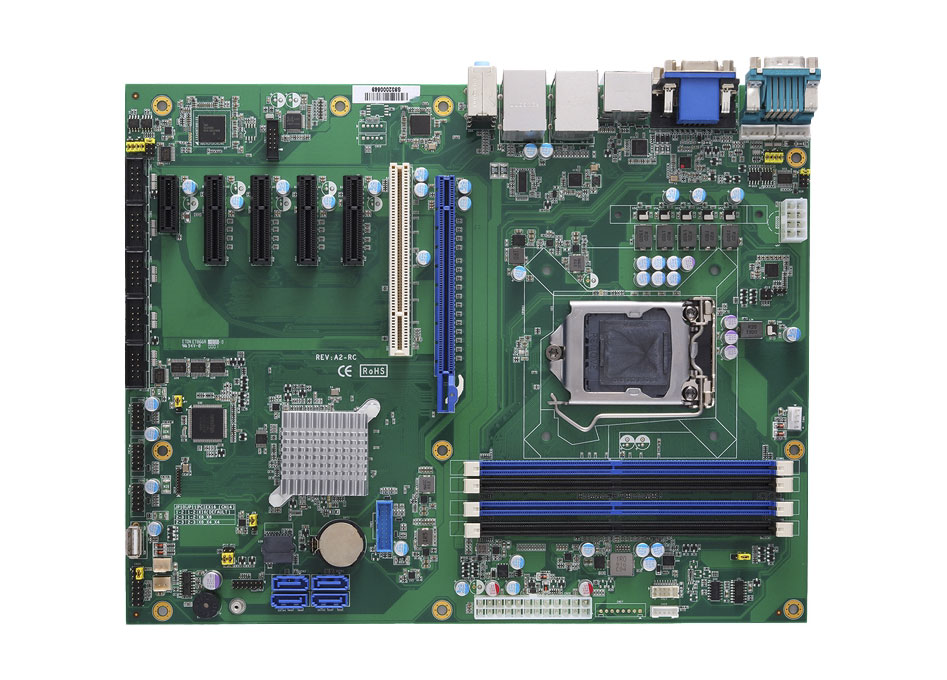

MBC-6521 – Industrial ATX Motherboards
Industrial ATX Industrial Motherboard with LGA1151 Socket 8th/9th Gen Intel® Core™ and Xeon E Processors, Intel® Q370/C246, DDR4, USB 3.1, SATA RAID, Dual LANs, VGA/DVI/DisplayPort/HDMI
- Supports Intel 8th/9th Gen. Core i3/i5/i7 and Xeon E Processors
- Dual Gigabit Ethernet supported
- (4) SATA-600
- Watchdog & Hardware Monitor function
- HDMI/DisplayPort/DVI-D/VGA multiple outputs
Description
| CPU | LGA1151 socket supports 8th/9th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processors C246 supports Xeon E processors Up to 95W TDP |
|---|---|
| Chipset | Intel® Q370/C246 PCH |
| System Memory | (4) 288-pin DIMM DDR4 2400/2666 up to 128GB C246 with Xeon E supports ECC RAM |
| Display | Intel® HD Graphics (1) HDMI, (1)VGA, (1) DVI-D and (1) DisplayPort++ |
| Ethernet | LAN1 with 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM, iAMT with Intel® i219LM LAN2 with 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM with Intel® i211-AT |
| SATA | (4) SATA3 with RAID 0, 1, 5, 10 |
| Audio | Built-in HD Audio Codec with Realtek ALC662 |
| Serial Port | (4) RS-232 and (2) jumper selectable RS-232/422/485 serial ports |
| USB | (2) USB 3.1 Gen2 ports (4) USB 3.1 Gen1 ports (7) USB 2.0 ports |
| Onboard Expansion | (1) PCIe x16 Gen3 slot (4) PCIe x4 slots (1) PCIe x1 slot (1) PCI slot |
