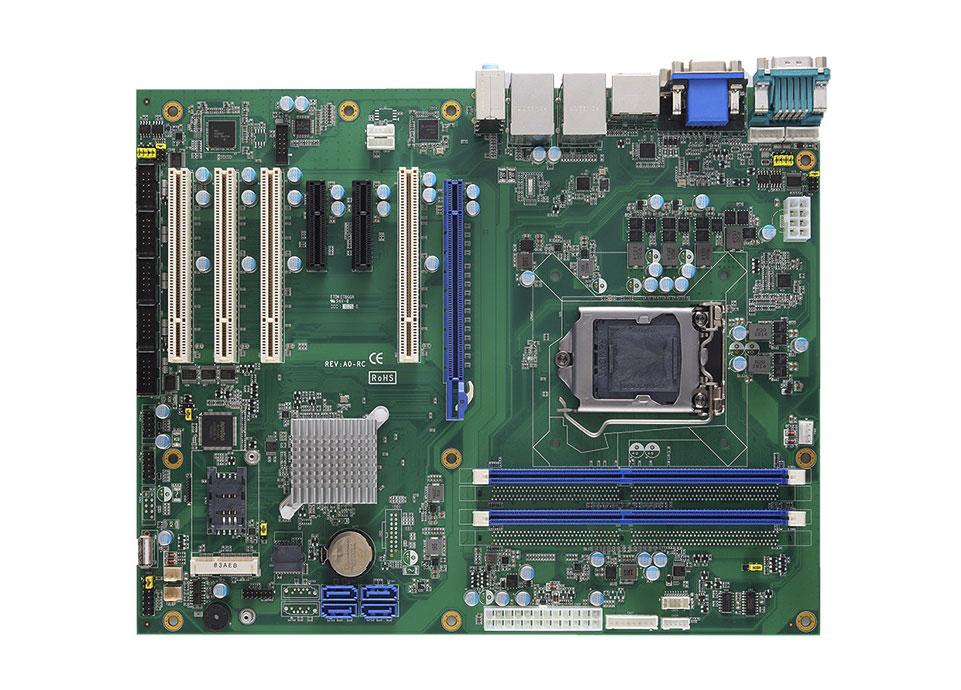

MBC-6519 – Industrial ATX Motherboards
Industrial ATX Industrial Motherboard with LGA1151 Socket 8th Gen Intel® Core™ Processor, Intel® H310, DDR4, USB 3.1, SATA, Dual LANs, VGA/DisplayPort/HDMI
- Supports Intel 8th Gen. Core i3/i5/i7 Processors
- Dual Gigabit Ethernet supported
- (4) SATA-600
- Watchdog & Hardware Monitor function
- HDMI/Display Port/VGA multiple outputs
Description
MBC-6519 – Industrial ATX Motherboards
| CPU | LGA1151 socket supports 8th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor |
|---|---|
| Chipset | Intel® H310 PCH |
| System Memory | (2) 288-pin DIMM DDR4 2400/2666 up to 32 GB |
| Display | Intel® HD Graphics (1) HDMI, (1)VGA, (1) DVI-D and (1) DisplayPort |
| Ethernet | LAN1 with 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM, iAMT with Intel® i219LM LAN2 with 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM with Intel® i210 |
| SATA | (4) SATA3 |
| Audio | Built-in HD Audio Codec with Realtek ALC662 |
| Serial Port | (4) RS-232 and (2) jumper selectable RS-232/422/485 serial ports |
| USB | (4) USB 3.1 and (5) USB 2.0 ports |
| Onboard Expansion | (1) PCIe x16,(2) PCIe x4 slots (2 PCIe x1 signal) (4) PCI |
