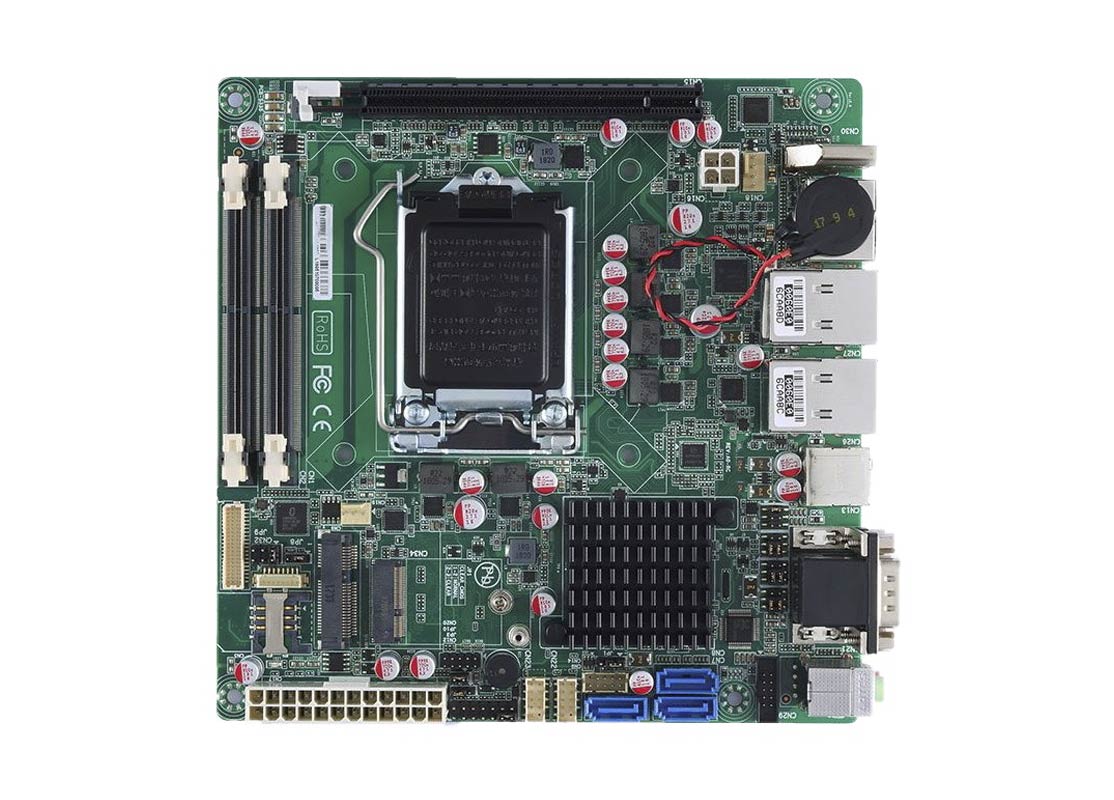

MBC-6518 – Industrial Motherboards Mini-ITX
Industrial Mini-ITX Motherboard supports LGA1151 Intel® Core™ i7/ i5/ i3 Intel® H310/Q370 PCH, USB 3.0, SATA 3.0, Dual LAN, DisplayPort/ HDMI/LVDS and PCIe Mini Card
- Supports Intel 8/9th Gen. Core i3/i5/i7 Processors
- Dual Gigabit Ethernet supported
- (3) SATA-600 & (1) mSATA
- Watchdog & Hardware Monitor function
- HDMI/Display Port/LVDS multiple outputs
Description
MBC-6518 – Industrial Motherboards Mini-ITX
| CPU | LGA1151 socket 8/9th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor Supports up to 65W TDP |
|---|---|
| Chipset | Intel® H310/Q370 PCH |
| System Memory | (2) 260-pin SO-DIMM dual channel DDR4-2400/2666, max. up 32 GB |
| Display | Intel® integrated Gfx graphic engine (1) HDMI and (2) DisplayPort++ (1) LVDS |
| Ethernet | (2) Gigabit LAN with Intel® i219LM and i211AT Supports Wake-on-LAN, PXE Boot ROM |
| Storage | (3) SATA-600 & (1) mSATA |
| Audio | Built-in HD Audio Codec |
| Serial Port | (3) RS232 & (1) RS232/422/485 serial ports |
| USB | (4) USB 3.0 and (4) USB 2.0 ports |
| Onboard Expansion | (1) PCIe x16 Gen3 (1) PCI Express Mini card (1) M.2 Key E 22 x 30 |
