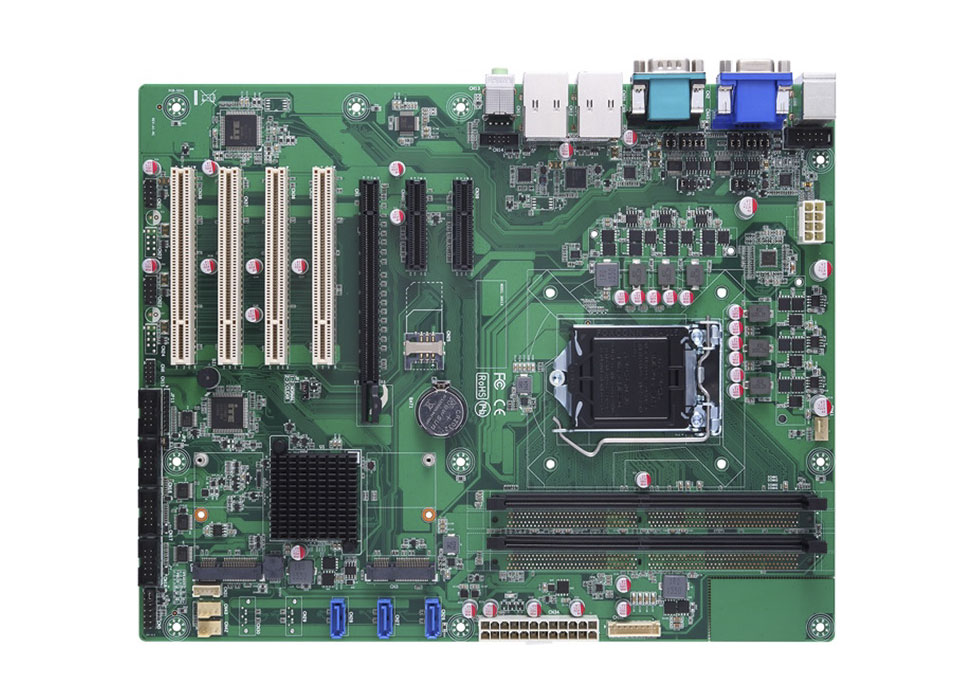

MBC-6515 – Industrial ATX Motherboards
Industrial ATX Industrial Motherboard with LGA1151 Socket 6th/7th Gen Intel® Core™ Processor, Intel® H110, DDR4, USB 3.0, SATA 3.0, Dual LANs, VGA/DisplayPort/HDMI and mSATA
- Supports Intel 6th/7th Gen. Core i3/i5/i7 Processors
- Dual Gigabit Ethernet supported
- (3) SATA-600 & (1) mSATA
- Watchdog & Hardware Monitor function
- HDMI/Display Port/VGA multiple outputs
Description
| CPU | LGA1151 socket 6th/7th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor |
|---|---|
| Chipset | Intel® H110 PCH |
| System Memory | (2) 288-pin Long-DIMM dual channel DDR4-2133, max. up 32 GB |
| Display | Intel® HD Graphics 530/510 (1) HDMI, (1) VGA and (1) DisplayPort |
| Ethernet | (2) Gigabit LAN with Intel® i219LM and i210AT Supports Wake-on-LAN, PXE Boot ROM |
| IDE | None |
| SATA | (3) SATA-600 & (1) mSATA |
| Audio | Built-in HD Audio Codec with Realtek ALC662 |
| Serial Port | (4) RS232 & (2) RS232/422/485 serial ports |
| USB | (4) USB 3.0 and (4) USB 2.0 ports |
| Onboard Expansion | (1) PCIe x16 Gen3 (2) PCIe x4 slots (support x1 signal only) (1) PCI Express mini card (4) PCI slots |
