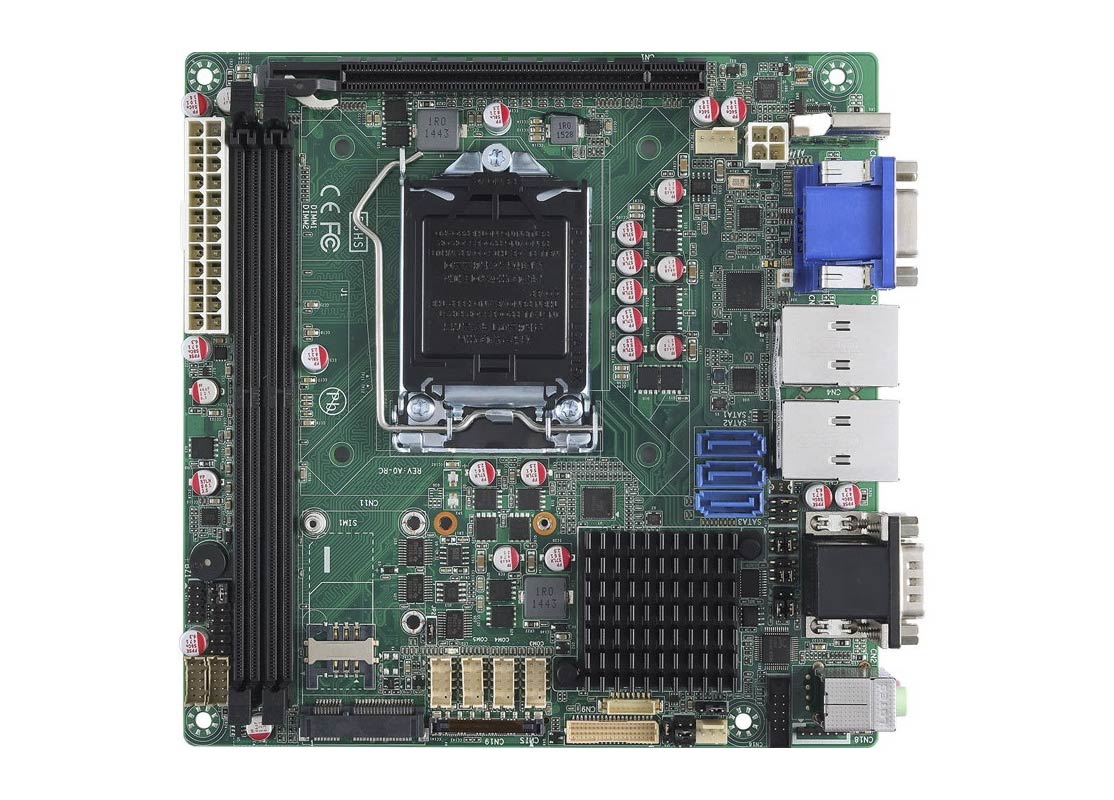

Industrial Mini-ITX Motherboard supports LGA1151 Intel® Core™ i7/ i5/ i3 Intel® H110/Q170 PCH, USB 3.0, SATA 3.0, Dual LAN, DisplayPort/VGA/HDMI and PCIe Mini Card

  • Supports Intel 6th/7th Gen. Core i3/i5/i7 Processors
  • Dual Gigabit Ethernet supported
  • (3) SATA-600 & (1) mSATA
  • Watchdog & Hardware Monitor function
  • HDMI/Display Port/VGA/LVDS multiple outputs
MBC-6514

Description

MBC-6514 – Industrial Motherboards Mini-ITX

CPU LGA1151 socket 6th/7th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor
Chipset Intel® H110/Q170 PCH
System Memory (2) 288-pin Long-DIMM dual channel DDR4-2133, max. up 32 GB
Display Intel® HD Graphics 530/510
(1) HDMI, (1) VGA and (1) DisplayPort
(1) LVDS
Ethernet (2) Gigabit LAN with Intel® i219LM and i211AT
Supports Wake-on-LAN, PXE Boot ROM
IDE None
SATA (3) SATA-600 & (1) mSATA (Support RAID 0, 1, 5, 10 for Q170)
Audio Built-in HD Audio Codec
Serial Port (5) RS232 & (1) RS232/422/485 serial ports
USB (4) USB 3.0 and (4) USB 2.0 ports
Onboard Expansion (1) PCIe x16 Gen3
(1) PCI Express Mini card
