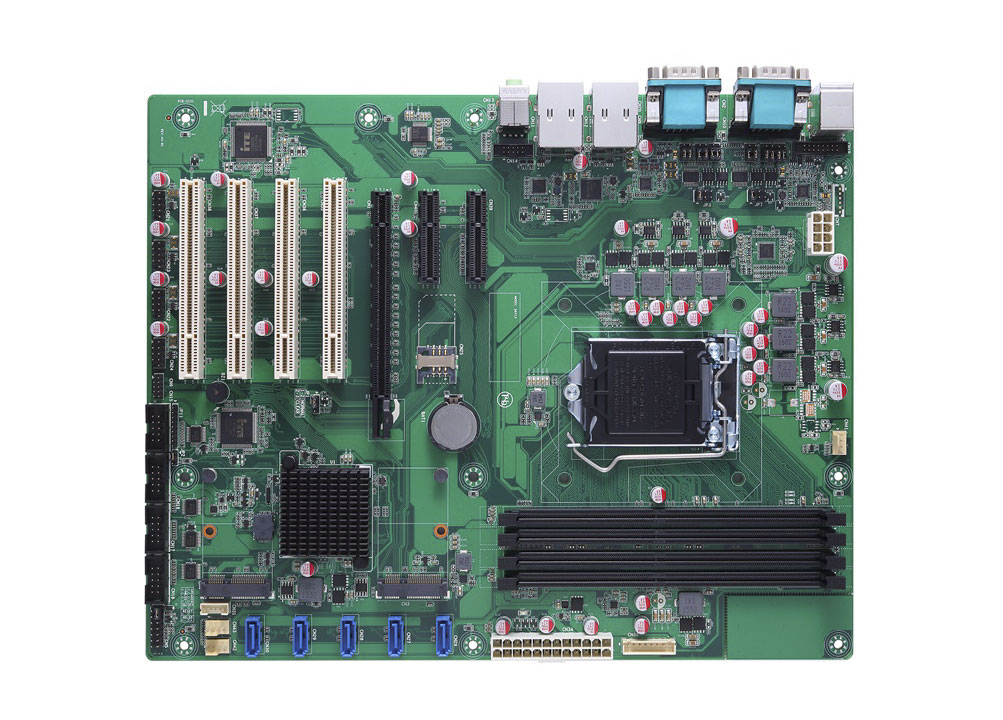

MBC-6513 – Industrial ATX Motherboards
Industrial ATX Motherboard with LGA1151 Socket 6th Generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® Processor, Intel® Q170, DDR4, USB 3.0, SATA 3.0, Dual LANs, VGA/DP/HDMI and mSATA
- Supports Intel 6th Gen. Core i3/i5/i7 Processors
- Dual Gigabit Ethernet supported
- (5) SATA-600 with RAID 0, 1, 5, 10
- Watchdog & Hardware Monitor function
- HDMI/Display Port/VGA multiple outputs
Description
| CPU | LGA1151 socket supports 6th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor |
|---|---|
| Chipset | Intel® Q170 PCH |
| System Memory | (4) 288-pin DIMM DDR4-2133 up to 64 GB |
| Display | Intel® HD Graphics 530/510 (1) HDMI, (1)VGA and (1) DisplayPort |
| Ethernet | LAN1 with 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM, iAMT with Intel® i219LM LAN2 with 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM with Intel® i210 |
| IDE | None |
| SATA | (5) SATA3 with RAID 0, 1 ,5, 10 (1) mSATA socket |
| Audio | Built-in HD Audio Codec with Realtek ALC662 |
| Serial Port | (4) RS-232 and (2) jumper selectable RS-232/422/485 serial ports |
| USB | (4) USB 3.0 and (8) USB 2.0 ports |
| Onboard Expansion | (1) PCIe x16,(2) PCIe x4,(1) PCIe Mini Card (4) PCI |
