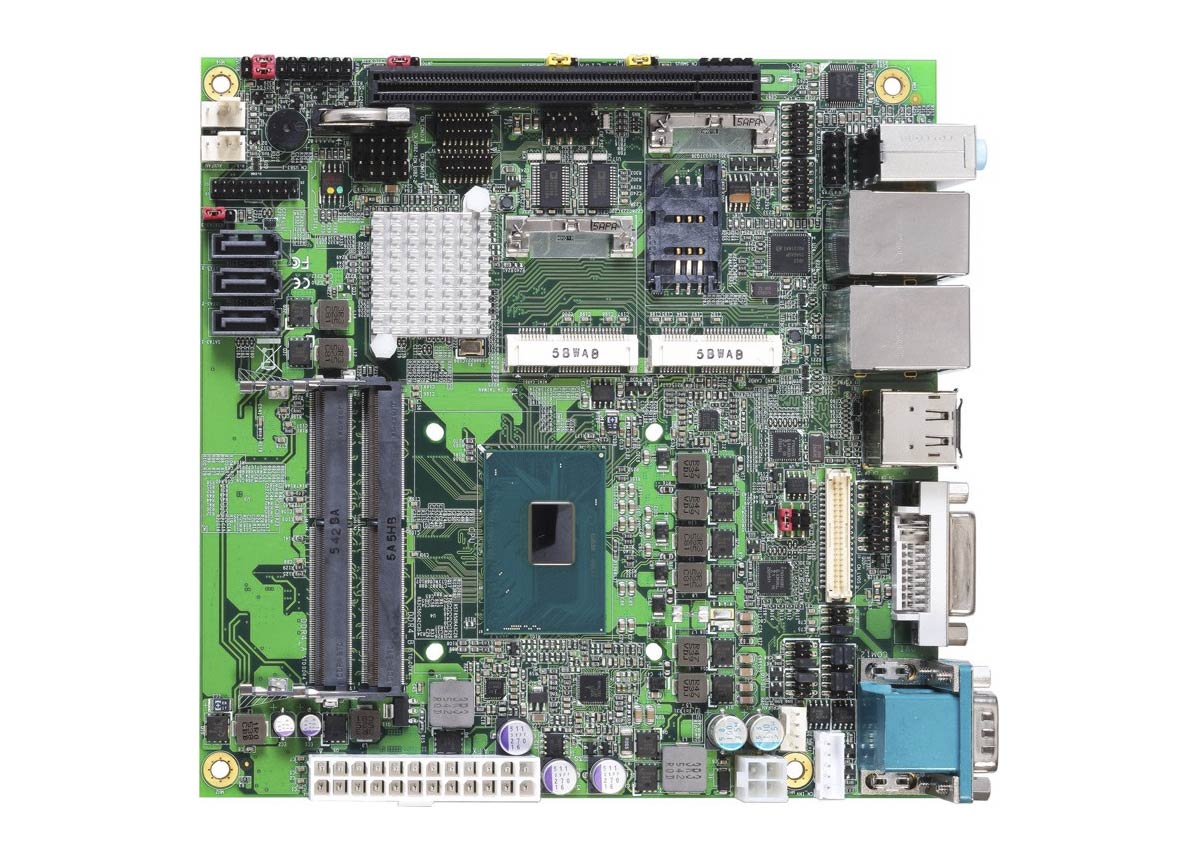

MBC-6245 – Industrial Motherboards Mini-ITX
Mini-ITX Motherboard supports mobile Intel® Skylake™ i7 / i5 / i3 H-series Processor, DDR4 SO-DIMM up to 32GB, Multi-Display, (2) Gigabit LAN and SATA RAID, 6V-30V power input
- Supports Intel 6th Gen. Core i3/i5/i7 Processors
- Dual Gigabit Ethernet supported
- (3) SATA-600 with RAID 0, 1, 5, 10
- Watchdog & Hardware Monitor function
- HDMI/Display Port/DVI-I multiple outputs
Description
MBC-6245 – Industrial Motherboards Mini-ITX
| CPU | Onboard 6th Generation Intel® Skylake™ i7 / i5 / i3 H-series Mobile Processor |
|---|---|
| Chipset | Intel® QM170 |
| System Memory | (2) 260-pin DDR4 2133 SO-DIMM up to 32GB |
| Display | Intel® HD Graphics 530 (1) HDMI, (1) DVI-I and (1) DisplayPort 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply |
| Ethernet | Intel I210 Gigabit controller (1) Intel® I219-LM Gigabit LAN PHY |
| IDE | None |
| SATA | (3) SATA3 with RAID 0, 1, 5, 10 |
| Audio | Integrated High Definition Audio codec |
| Serial Port | (5) RS-232 and (1) jumper selectable RS-232/422/485 serial ports |
| USB | (4) USB 2.0 and (6) USB 3.0 ports |
| Onboard Expansion | (1) PCIe x16 (1) PCIE Mini card (1) Half-Size PCIE Mini card, optional support mSATA |
