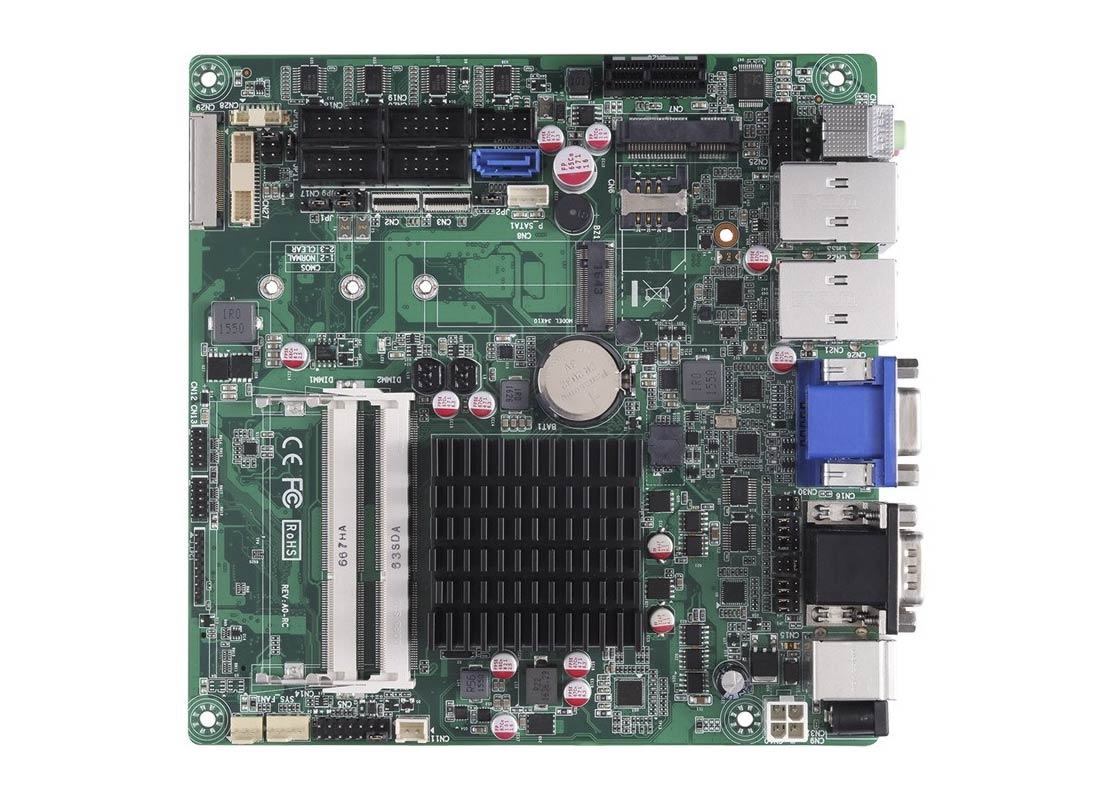

MBC-4507 – 工業用電腦Mini-ITX主機板

MBC-4507 – 工業用電腦Mini-ITX主機板

Industrial Mini-ITX Motherboard supports Intel® Celeron® Processor (Apollo Lake) SoC, VGA/HDMI/LVDS, USB 3.0, PCI Express Mini Card, PCIe x1, and HD Audio

  • Intel® Celeron® processor (Apollo Lake)
  • Dual Gigabit Ethernet supported
  • (1) SATA-600 & (1) M.2
  • Watchdog & Hardware Monitor function
  • HDMI/ VGA/LVDS multiple outputs

描述

MBC-4507 – 工業用電腦Mini-ITX主機板

CPU Intel® Celeron® processor N3350 (up to 2.4 GHz) quad core SoC (Apollo Lake)
Intel® Pentium® processor N4200 (up to 2.5 GHz) quad core SoC (Apollo Lake)
Chipset SoC integrated
System Memory (2) 204-pin SO-DIMM supports DDR3L-1600 up to 8GB
Display Integrated Intel HD Graphics
(1) VGA & (1) HDMI outputs
Onboard 18/24-bit LVDS interface
Ethernet Dual Gigabit Ethernet controllers
SATA (1) SATA3 & (1) M.2
Audio Integrated High Definition Audio codec
Serial Port (4) RS-232 & (2) RS232/422/485 serial ports
USB (2) USB 2.0 & (4) USB 3.0 Ports
Onboard Expansion (1) PCI Express Mini Card Socket, (1) PCIe x1
Power Supply 12-24VDC
