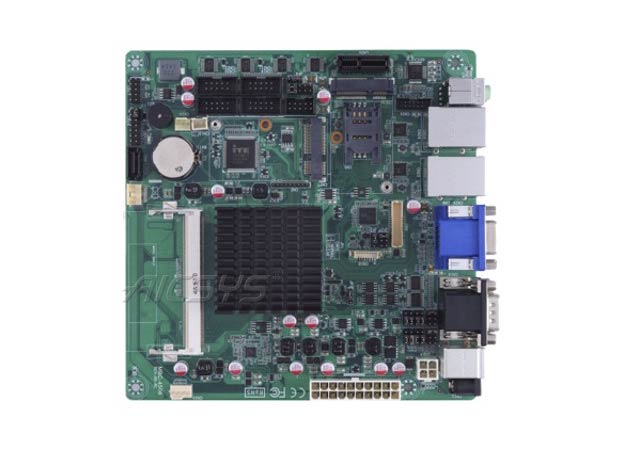

MBC-4506 – Industrial Motherboards Mini-ITX
Mini-ITX Motherboard with Intel® Bay Trail-D Celeron® J1900, VGA/HDMI/LVDS, Dual GbE LAN, USB 3.0, PCIe x1, PCI express mini card and HD Audio
- Mini-ITX Motherboard
- Onboard Intel® Bay Trail-D 2.0GHz CPU
- Dual Gigabit Ethernet supported
- (6) COM and (6) USB ports
- PCI Express mini card socket
- LVDS interface
- Supports Watchdog Timer
Description
MBC-4506 – Industrial Motherboards Mini-ITX
| CPU | Intel® Celeron® processor J1900 (up to 2.42 GHz) quad core SoC (Bay Trail) |
|---|---|
| Chipset | SoC integrated |
| System Memory | (1) 204-pin SO-DIMM supports DDR3L-1333 up to 8GB |
| Display | Integrated Intel HD Graphics (1) VGA & (1) HDMI outputs Onboard 18/24-bit LVDS interface |
| Ethernet | Dual Gigabit Ethernet controllers |
| SATA | (1) SATA3 & (1) mSATA |
| Audio | Integrated High Definition Audio codec |
| Serial Port | (4) RS-232 & (2) RS232/422/485 serial ports |
| USB | (5) USB 2.0 & (1) USB 3.0 Ports |
| Onboard Expansion | (1) PCI Express Mini Card Socket, (1) PCIe x1 |
| Power Supply | 12VDC or STD ATX |
