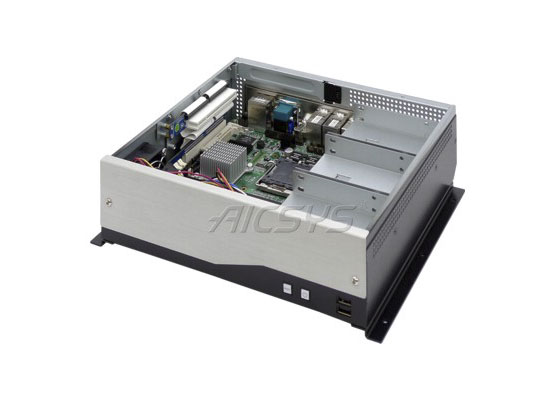

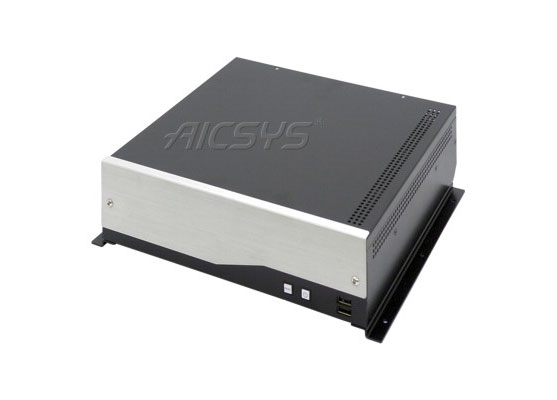

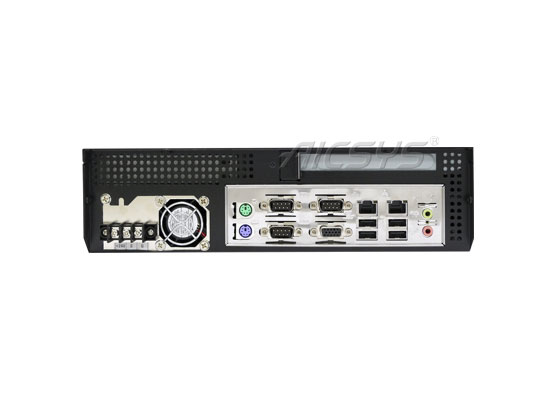

GeNie-S03 – Embedded Chassis

GeNie-S03 – Embedded Chassis

Mini ITX Compact Wallmount Chassis with one expansion slot, supports up to (8) 2.5" SATA HDD Drive Bays or (2) 3.5" HDD Drive Bays, Slim ODD (optional)

  • Mini-ITX Chassis with one expansion slot
  • Supports up to (8) 2.5″ SATA HDD Drive Bays or (2) 3.5″ HDD Drive Bays
  • (1) Slim ODD drive bay (optional)
  • (2) 2.0 USB ports on front panel
  • Different front panel color is available
  • Flex ATX power supply 200W

Description

GeNie-S03 – Embedded Chassis

Board Support Mini-ITX motherboard
Expansion Slots Optional (1) 32-bit PCI or PCI-E Riser Card
Drive Bays (2) 3.5″, or (4) 2.5″ with (1) slim ODD, or (8) 2.5″ Max.
Front Panel Power On/Off and reset switch
LED for Power ON/OFF, HDD Active, LAN Active
Power Supply Flex ATX power supply 200W
Cooling (1) 6cm Heavy Duty Ball Bearing Fan
Dimensions 268 (W) x 280 (D) x 77 (H) mm; 10.6 (W) x 11 (D) x 3 (H) inches
Gross Weight 3.4kg
