EBS-3J03 – Embedded Systems
Waterproof Fanless System with Intel® Skylake/Kabylake U-series Processor, (1) HDMI, (1) USB 3.0, (1) COM, PCIe Mini Card and DC 12V input
- Support IP69K waterproof and dustproof level
- Intel® Skylake/Kabylake U-series Processor
- (2) Gigabit Ethernet supported
- (1) 2.5” SATA HDD drive tray & (1) mSATA
- 12VDC power input
- Watchdog timer
Description
EBS-3J03 – Embedded Systems
| CPU Support | Onboard Intel® Skylake/Kabylake U-series Processor (TDP 15W) |
|---|---|
| Chipset | SoC |
| System Memory | (2) 260-pin DDR4 2133 SO-DIMM up to 32GB |
| Ethernet | (2) Gigabit Ethernet (Intel® i211AT, i219LM) (1) Half-size mini-PCIE slot (802.11 b/g/n + BT 4.0 installed in WIFI model) |
| Audio | None |
| Drive Bays | (1) 2.5” SATAIII 6Gb/s internal drive bay (only support 2.5″ HDD with height ≤ 10mm) (1) full‐size mSATA/Mini‐PCIe shared slot |

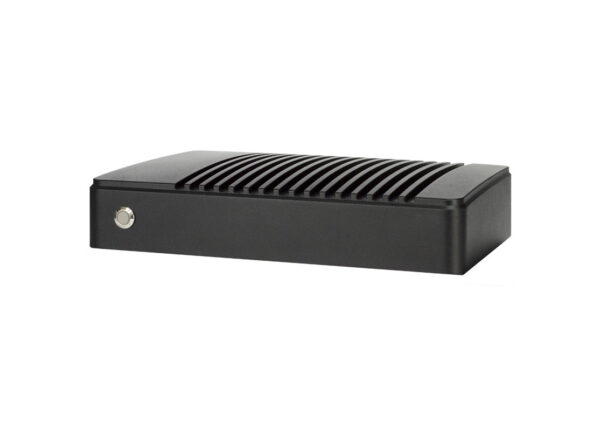

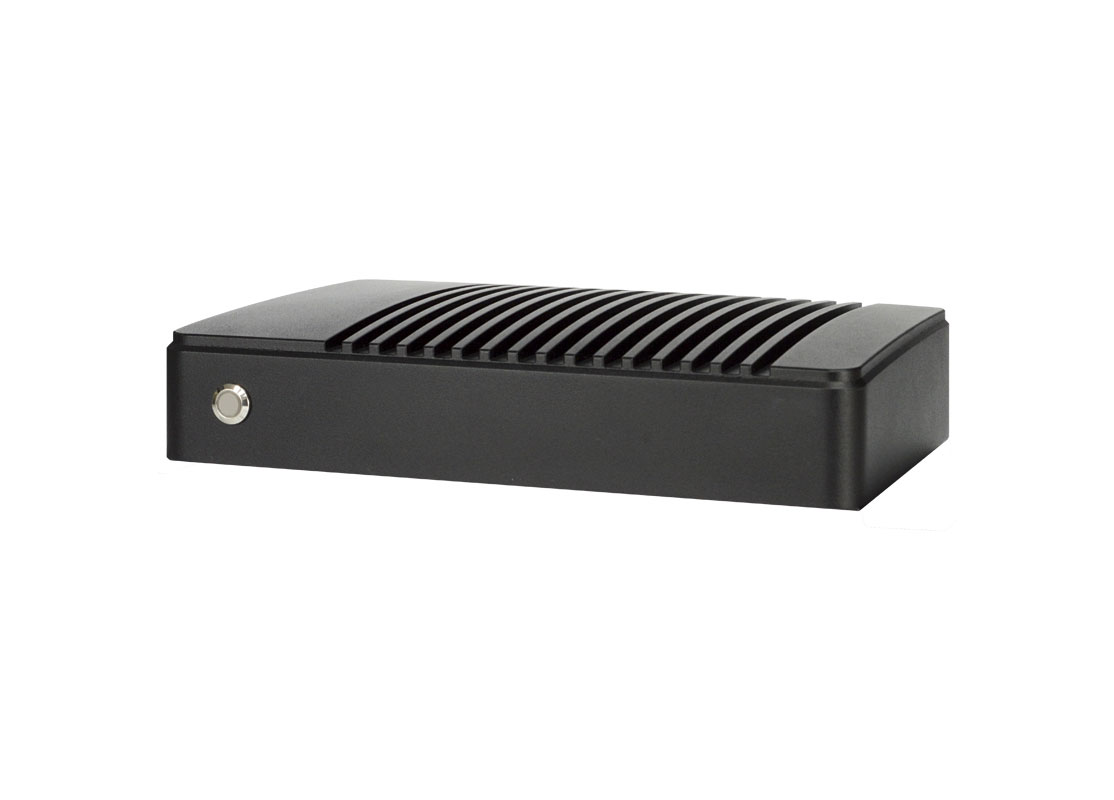

| Front Panal | On/Off switch, One power LED |

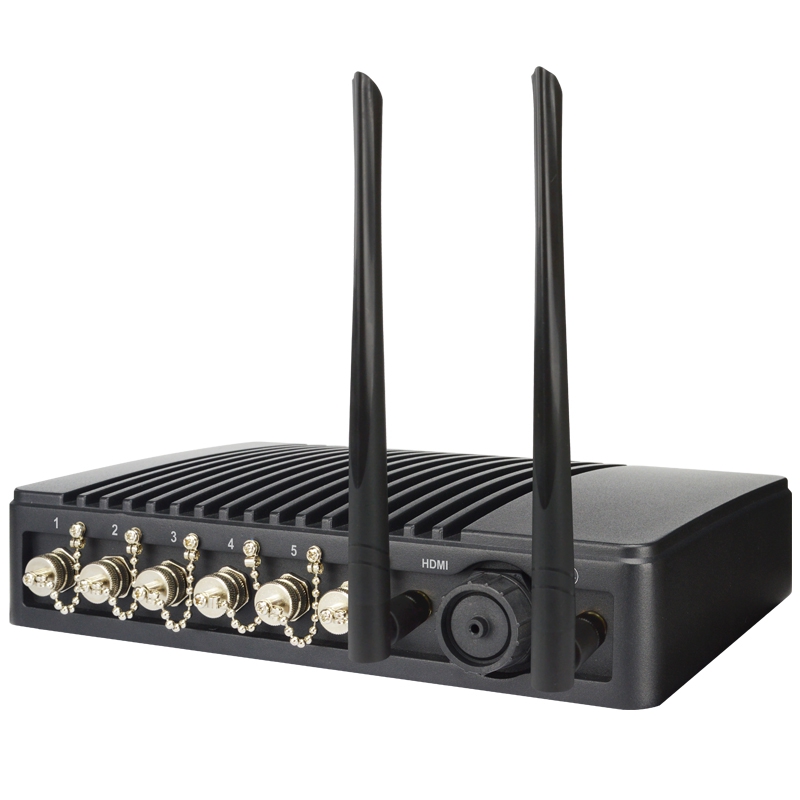

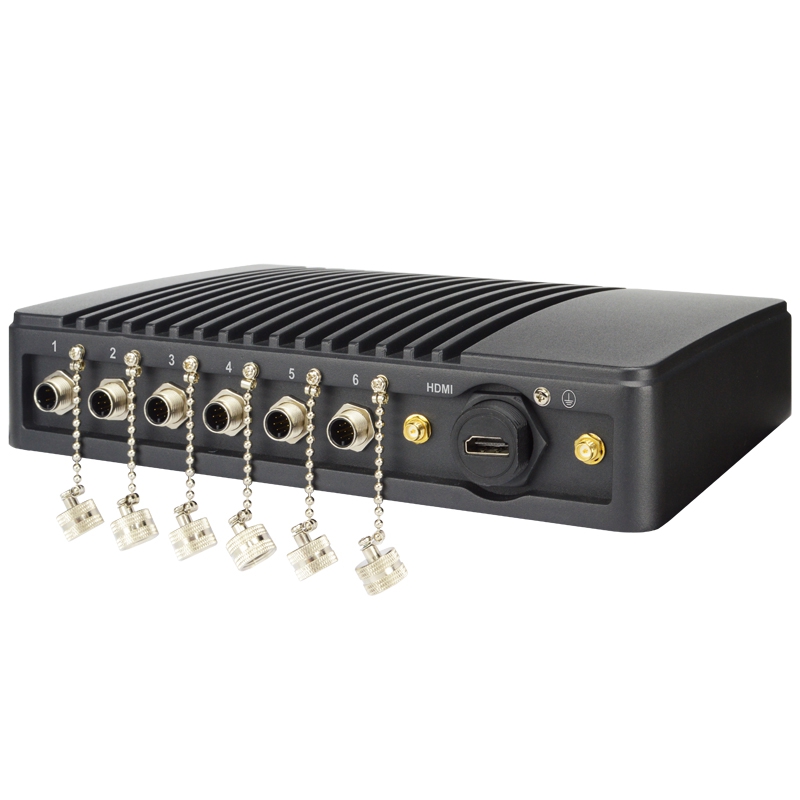

| Rear Panel | (1) RS-232/422/485 serial port (1) USB 2.0 & (1) USB 3.0 (2) SMA type connector opening for antenna (1) HDMI |
| Dimensions | 250 (W) x 171 (D) x 54 (H) mm |
| Gross Weight | 5.5 kg (approx) |
