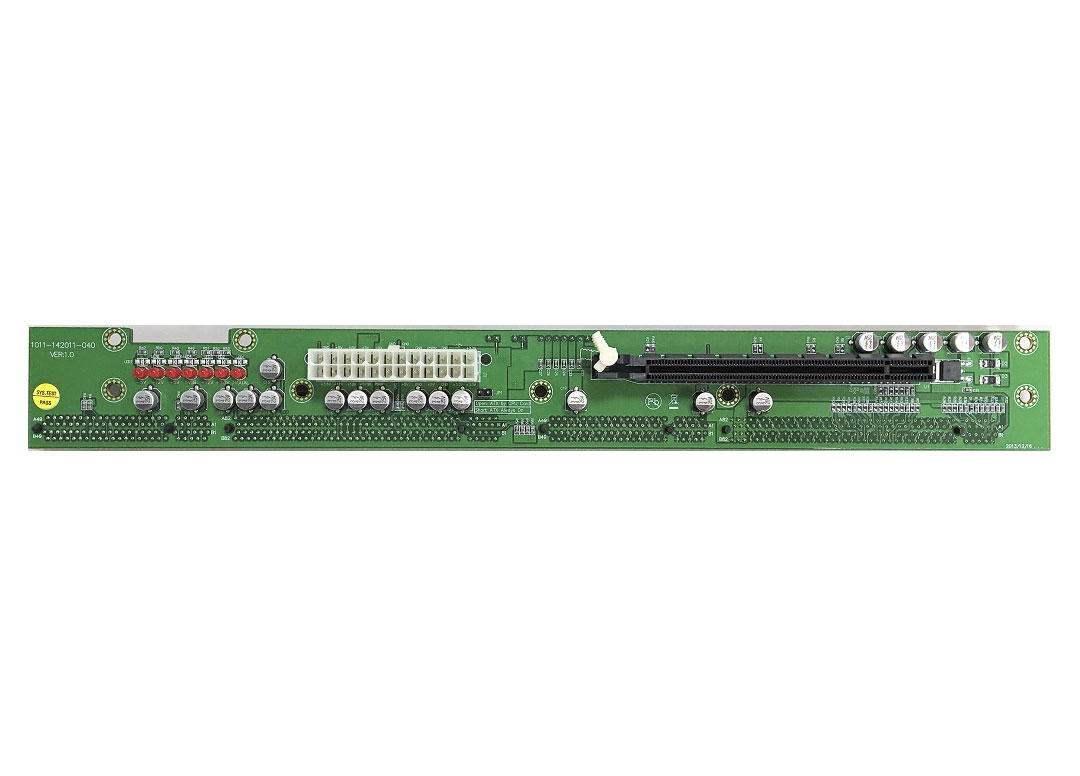

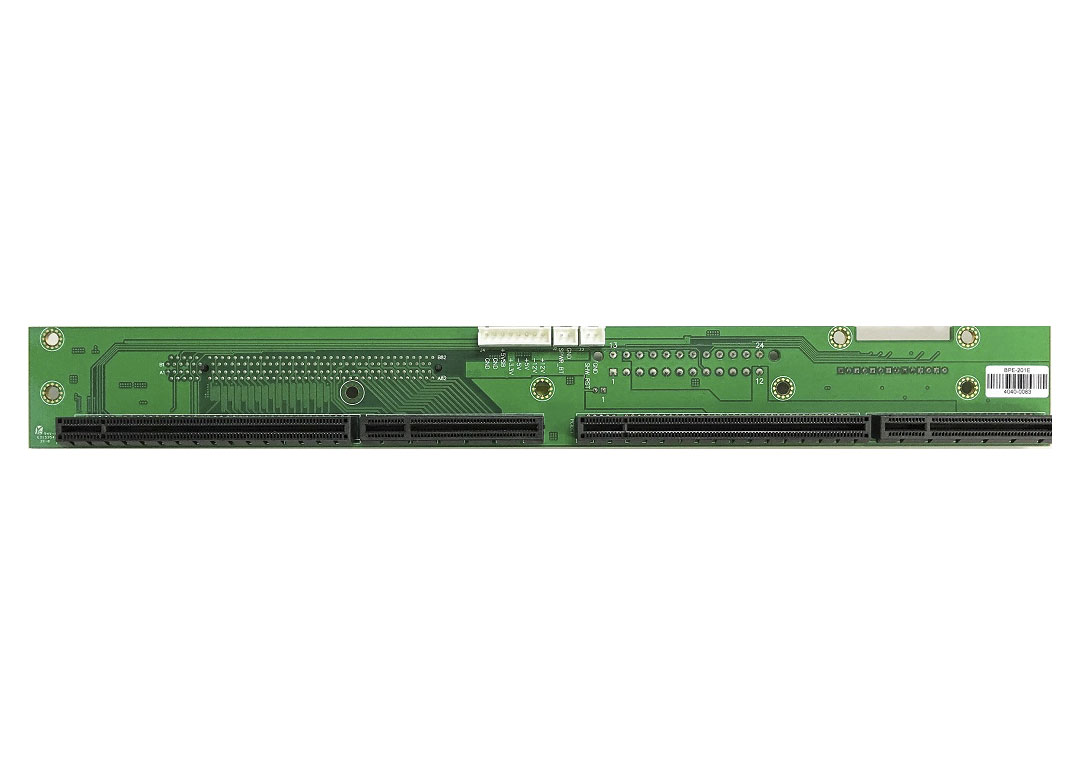

BPE-201E – Full-size PICMG 1.3 1U Backplanes

BPE-201E – Full-size PICMG 1.3 1U Backplanes

1U Butterfly PICMG 1.3 Backplane supports one PCIe x16 slot

  • Support PICMG Ver 1.3RC1.0 SHB slot X 1
  • Support PCI-E 16X slot X 1
  • Support ATX 24P power connector X 1
  • Dimension: 322.0 mm X 48.48 mm
BPE-201E_Machenical_Drawing
