BPE-1308AC2 – Full-size PICMG 1.3 SHB Backplanes
13-Slot PICMG 1.3 Backplane with (8) PCI (3) PCIe x1 and (1) PCIe x16 slots for SHB Express, Supports ATX 24P power connector
- 13-Slot PICMG 1.3 Backplane
- (1) PICMG ver. 1.3 RC1.0 SHB slot for SHB Express
- (1) PCIe x16 slot & (3) PCIe x1 slot
- (8) PCI 32-bit 5V slots
- (2) SATA connectors
- (4) USB ports (A type female) or by Pin Header
- Supports ATX 24P power connector
- (5) Connectors for 3-pin fans
- AT keyboard connector
- Power Indicator LEDs
- Multilayer PCB
- ATX Power Connector
- PCIe x16 slot also supports PCIe x1/x4/x8 PCIe add-on card
Ordering Information

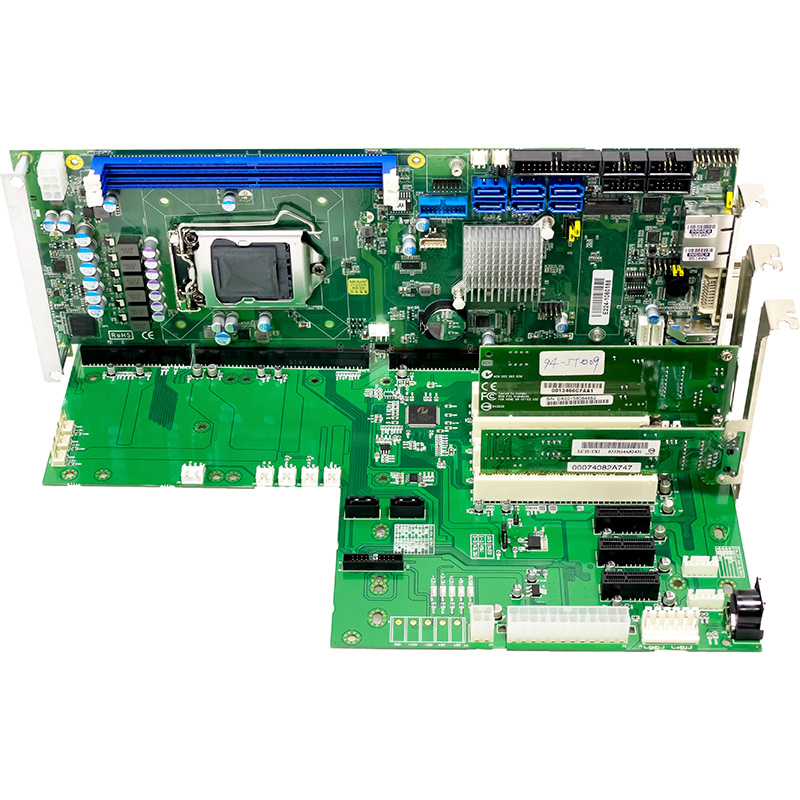

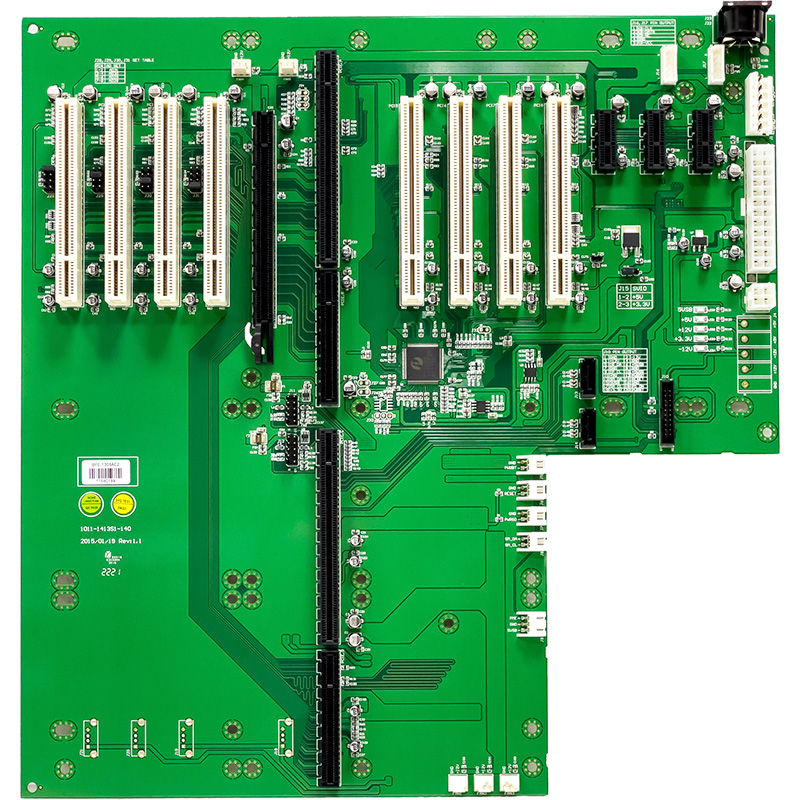

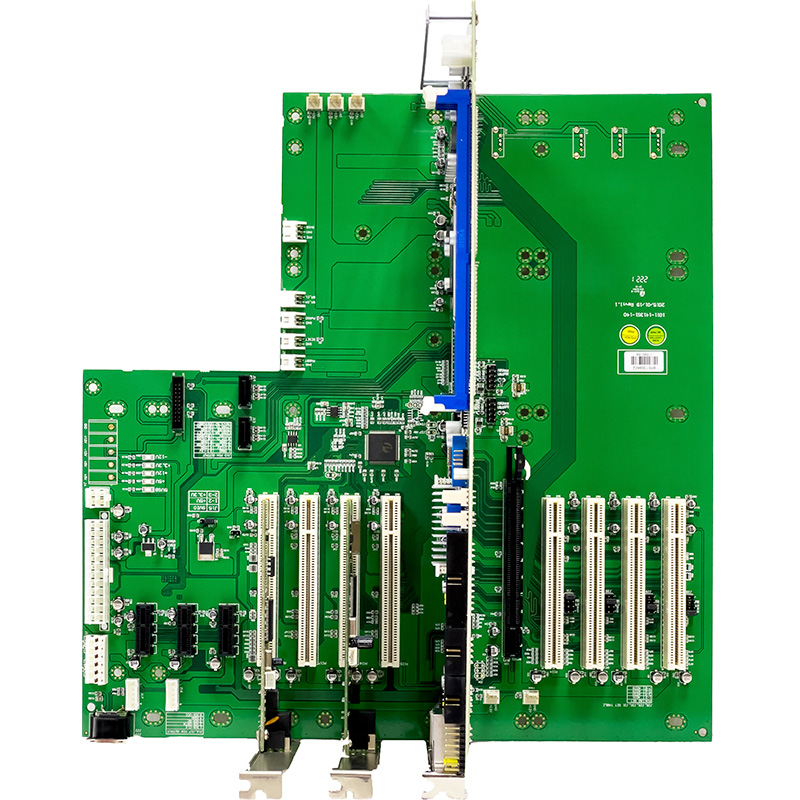

| BPE-1308AC2 | BPE-1308AC2 with Corner cut (see product pictures) |
|---|
