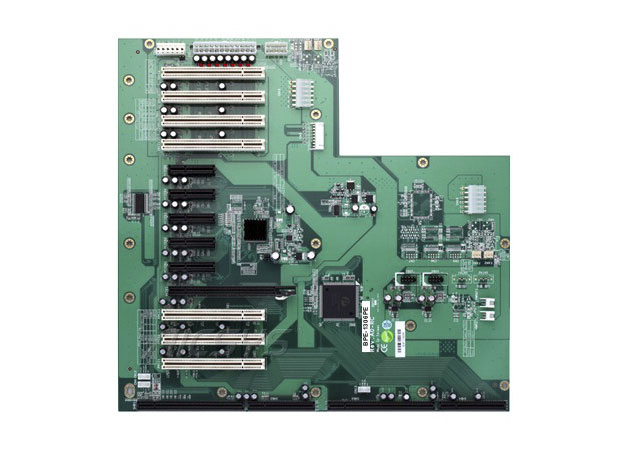

BPE-1306PE – Full-size PICMG 1.3 SHB Backplanes

BPE-1306PE – Full-size PICMG 1.3 SHB Backplanes

13-slot PICMG 1.3 Backplane with (7) PCI (1) PCIe x16 and (5) PCIe x4 slots for SHB Express, supports ATX 24P power connector

  • 13-Slot PICMG 1.3 SHB Express Backplane
  • (1) Full-Size SHB Express Slots, (7) PCI Slots, (1) PCIe x16 and (5) PCIe x4 Slots
  • Power Indicator LEDs
  • 8-pin Header Connecotr for Thermal Detect
  • Multilayer PCB
  • (2) USB 2.0 Connectors
  • 24-pin ATX Power Connector
BPE-1306PE_Machenical_Drawing
